Research Article
Revised

Adaptive strategies for the deployment of rapid diagnostic tests for COVID-19: a modelling study

[version 2; peer review: 2 approved, 1 approved with reservations]
PUBLISHED 27 May 2025
Author details Author details

Abstract

Background

Lateral flow assays (LFAs) for the rapid detection of severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) provide an affordable, rapid and decentralised mean for diagnosing coronavirus disease 2019 (COVID-19). Concentrating on urban areas in low- and middle-income countries, the aim of this analysis was to estimate the degree to which ‘dynamic’ screening algorithms, that adjust the use of confirmatory polymerase chain reaction (PCR) testing based on epidemiological conditions, could reduce cost without substantially reducing the impact of testing.

Methods

Concentrating on a hypothetical ‘second wave’ of COVID-19 in India, we modelled the potential impact of testing 0.5% of the population per day at random with LFA, regardless of symptom status. We considered dynamic testing strategies where LFA positive cases are confirmed with PCR when LFA positivity rates are below a given threshold (10%, 50% and 90% of the peak positivity rate at the height of the epidemic wave), compared to confirming all positive LFA results or confirming no results. Benefit was estimated based on cumulative incidence of infection, and resource requirements, based on the cumulative number of PCR tests used and the cumulative number of unnecessary isolations.

Results

A dynamic strategy of discontinuing PCR confirmation when LFA positivity exceeded 50% of the peak positivity rate in an unmitigated epidemic would achieve comparable impact to one employing PCR confirmation throughout (9.2% of cumulative cases averted vs 9.8%), while requiring 35% as many PCR tests. However, the dynamic testing strategy would increase the number of false-positive results substantially, from 0.07% of the population to 1.1%.

Conclusions

Dynamic diagnostic strategies that adjust to epidemic conditions could help maximise the impact of testing at a given cost. Generally, dynamic strategies reduce the number of confirmatory PCR tests needed, but increase the number of unnecessary isolations. Optimal strategies will depend on whether greater priority is placed on limiting confirmatory testing or false-positive diagnoses.

Keywords

COVID-19, lateral flow assays, mathematical modelling

Revised Amendments from Version 1

The major differences between this version of the article and the previously published version include revisions made in response to reviewer feedback. We have edited the manuscript to improve clarity and overall comprehensibility, ensuring that the presentation of our findings is more accessible and organised. Additionally, we have updated and expanded the background section to include more recent references and provide a clearer context for the relevance and importance of our analysis.

See the authors' detailed response to the review by Cihan Papan
See the authors' detailed response to the review by Flaminia Tomassetti

Introduction

Diagnosis has been a critical component of the global coronavirus disease 2019 (COVID-19) response1. In New Delhi, India, during the first wave of the pandemic, the state government implemented a task force in charge of testing, tracing and tracking new infections, with a combination of reverse-transcriptase polymerase chain reaction (RT-PCR) tests, point-of-care molecular tests and rapid antibody tests, in an effort to detect and isolate incident cases of COVID-19 quickly and reduce transmission2,3. As the numbers of new infections started to drop in September 2020, India loosened the measures that had been put in place to reduce transmission, including lockdowns and social distancing, but in the first quarter of 2021 the surge of the new delta variant of COVID-19, spreading faster than the first wave, took India by surprise4. Across megacities like New Delhi and Mumbai, which had seen very high infection rates during the first COVID-19 wave and therefore believed that a large proportion of their population would have gained some antibody protection from further infection, the delta wave spread very quickly, crippling hospitals and health facilities4. Despite the introduction of the COVID-19 vaccine in January of 2021, the coverage by March was not high enough to effectively curb the delta wave surge5.

Although molecular tests such as RT-PCR are highly sensitive6, they are costly and require training to operate. Because of these factors, low-and-middle-income countries (LMICs) have limited RT-PCR use7,8. Rapid diagnostic tests (RDTs), employing lateral flow assays, offer a more affordable approach to detecting SARS-CoV-2, and have been used widely and effectively for community-level testing, as well as for self-testing in households, including in LMICs913. RDTs are, however, less sensitive and specific than PCR which may result in a number diagnoses being missed, as well as more unnecessary isolations of individuals with false-positive test results1315.

In previous work16, we examined the use of RDTs in pandemic response, using modelling to compare different scenarios for their use in cities such as New Delhi, India, and Kampala, Uganda. The results of that analysis suggested that LFAs would affect transmission most efficiently if they were focused on testing symptomatic patients presenting to healthcare facilities, rather than additionally aiming to reach asymptomatic and presymptomatic cases in the community. However, a limitation of that work is that diagnostic algorithms involving LFAs were assumed to remain uniform through time, regardless of the prevalence of SARS-CoV-2. In practice, strategies that can adapt during the course of a pandemic wave – for example, switching to more simplified, rapid algorithms as prevalence increases – may provide an approach for maximising the benefit of LFAs. Here, we sought to examine such strategies using modelling, focusing on the potential impact of dynamic testing strategies during an epidemic consistent with India’s second wave of COVID-19. Although the severity of COVID-19 as a pandemic threat has diminished since 2020, these questions remain relevant for future pandemic response.

Methods

Model outline

We built on a deterministic, compartmental model of a hypothetical second wave of SARS-CoV-2 transmission in New Delhi, originally developed in 16, with initial conditions and basic reproduction number similar to those relating to the delta wave in India, in 2020–2021. The overall model structure is illustrated schematically in Figure 1. Briefly, to account for age-dependent severity of infection, and to capture the population structure in New Delhi, the model incorporates three different age groups: <19 years old, 19 – 64 years old, and 65 years old and above. It also captures important features of the natural history of SARS-CoV-2 infection, including presymptomatic infection (cases prior to developing symptoms) and asymptomatic infection (cases who never develop symptoms), both of which are capable of transmission17,18. We did not model vaccination, because vaccination coverage had not yet reached substantial levels during the first wave in India19. Although the originally published model16 incorporated additional structure for delays in PCR testing, for simplicity we did not incorporate that structure in the present work. Instead, for the current analysis, we modelled challenges in the availability of PCR in LMIC settings by assuming that the delay for PCR confirmatory testing is fixed at three days (amounting to half of the infectious period) at all stages of the pandemic, and that when PCR confirmatory testing is used, isolations are deferred until LFA positive results are confirmed. As described below, we estimated the number of PCR tests that would be needed under different testing strategies, treating this indicator as a quantity to be minimised.

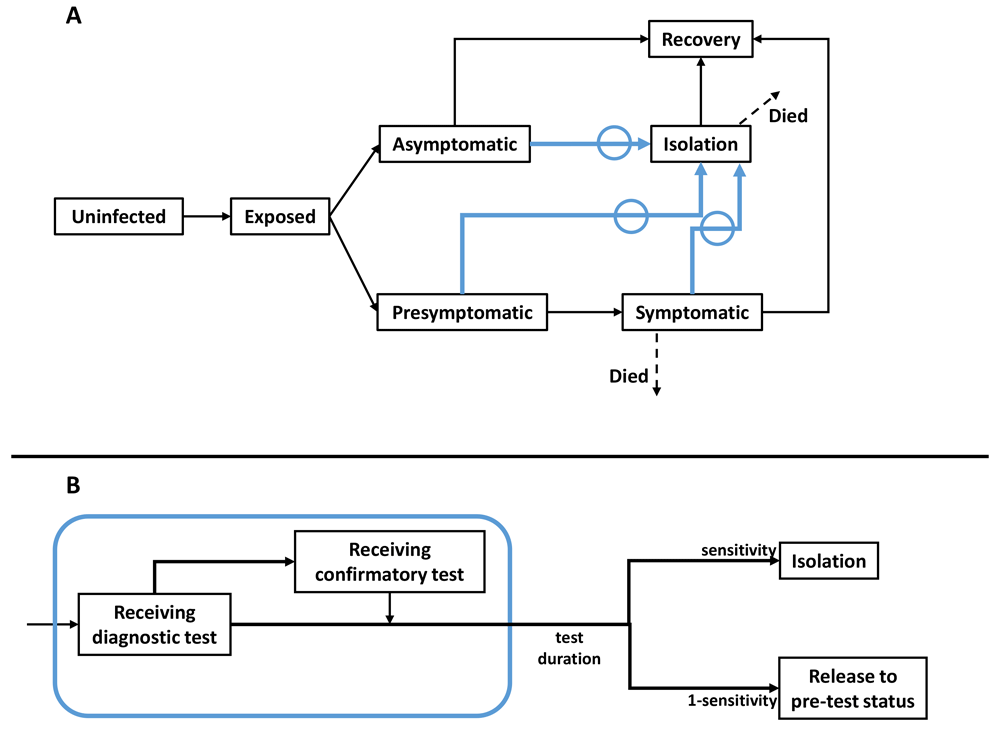

Figure 1. Schematic illustration of the model structure.

(A) Compartments representing natural history of SARS-CoV-2, and processes involved in a test-and-isolate intervention. This structure is stratified into three age groups: children (≤ 19 years old), adults (20 – 64 years old), and older adults (≥ 65 years old). As described in the main text, we assume that asymptomatic and pre-symptomatic individuals are infectious, but potentially to a lesser extent than symptomatic cases. Arrows in blue show isolation through testing, shown in greater detail in the bottom panel. (B) Detail of diagnostic testing. We assumed that there is no constraint on the number of LFA tests that can be performed per unit time. To reflect limits on PCR availability in LMICs in a simple way, we assumed that PCR results are only available after three days, and further that individuals are not required to self-isolate during this period.

Model parameters were specified as follows: natural history parameters were drawn from the literature, including estimates of the relative infectivity of asymptomatic/pre-symptomatic vs symptomatic infection. The rate of infectivity per symptomatic case was calibrated in order to yield a basic reproduction number, R0, of 2.5, consistent with previous work20. Finally, we drew from the literature for the sensitivity and specificity of LFAs and PCR6,7. See Table S1 in the Underlying data, for a full list of model parameters and values21. The code itself is available from GitHub and archived with Zenodo22.

Scenarios modelled

We concentrated on community-level testing, which aims to use LFAs to identify infectious cases of SARS-CoV-2, regardless of symptom status, and to isolate all who test positive. While using LFAs alone would lead to rapid isolation of people with SARS-CoV-2 (and thus greater reduction in transmission), previous analysis16 illustrated that a major limitation of such a strategy is that it would lead to a prohibitive number of false-positive diagnoses. It would therefore be critical to implement confirmatory testing, for example using PCR, following any LFA positive test results. We therefore examined whether there would be stages in a pandemic wave when the requirement to confirm positive LFA results could be lifted, in order to reduce costs and minimise any delays in the isolation of individuals with SARS-CoV-2.

The proportion of LFA results that were positive (an indicator of current disease burden that would be readily available in a public testing program, although not in at-home testing) was used to trigger switching between confirmatory testing and LFA alone in the dynamic strategies we evaluated. We determined the peak LFA positivity rate in our model of an unmitigated epidemic wave (i.e., with no isolation of infected individuals), and we defined thresholds relative to this “peak value”.

We modelled the following scenarios:

  • (i) A ‘low threshold’ dynamic strategy where PCR is used for confirmation of LFA-positive results as long as the proportion of LFA positive tests is less than 10% of the peak value. We assumed that, for LFA positivity rates above this threshold, all individuals testing positive on LFA would be asked to isolate without need for PCR confirmation.

  • (ii) A ‘medium threshold’ dynamic strategy: the same as (i), but with the LFA positivity threshold set at 50% of the peak value.

  • (iii) A ‘high threshold’ dynamic strategy: the same as (i), but with the LFA positivity threshold set at 90% of the peak value.

  • (iv) ‘LFA only’: A non-dynamic strategy where PCR confirmation is never used for LFA-positive individuals, and

  • (v) ‘LFA+PCR’: A non-dynamic strategy where PCR confirmation is always required for LFA-positive individuals.

The latter two scenarios were included for reference; they represent, respectively, a strategy that would create large numbers of false-positive diagnoses (strategy iv), and one that would involve maximum PCR usage (strategy v).

For each strategy we estimated the daily and cumulative incidence of symptomatic COVID as a measure of epidemiological impact, assuming that the testing regime was initiated before the onset of the pandemic wave. We also calculated two proxies for trade-offs between impact and resource requirements: number of cases averted per PCR test used, and number of cases averted per unnecessary (false-positive) isolation.

Uncertainty

All parameters were subject to the uncertainty intervals shown in Table S1 in the supporting information. Uncertainty was estimated by using Latin Hypercube Sampling to obtain 250 samples of model parameters; identifying the value of β that yielded R0 = 2.5 for each parameter set; and simulating model projections using each of these 250 samples. Uncertainty in model outputs was calculated using 2.5th and 97.5th percentiles as the lower and upper 95% uncertainty intervals, while central estimates were obtained using the 50th percentile.

All analyses were performed in MATLAB, R2022a. An open-source alternative that may be able to perform similar functions required to repeat this study is GNU Octave.

Results

Figure 2 shows the results of each community-level testing strategy on the hypothetical second epidemic wave of COVID-19 in India, with overall cases averted shown in Table 1. For example, an intervention testing only with LFA, with isolation of all LFA-positive individuals and no need for confirmation of positive LFA results, would avert 9.8% (95% CrI 6.5 – 13.2%) of symptomatic cases, while requiring PCR confirmation for all LFA-positive individuals would reduce this impact by about one-third, to 6% (95% CrI 4 – 8%). Each of the dynamic strategies was projected to have an epidemiological impact intermediate to these two extremes.

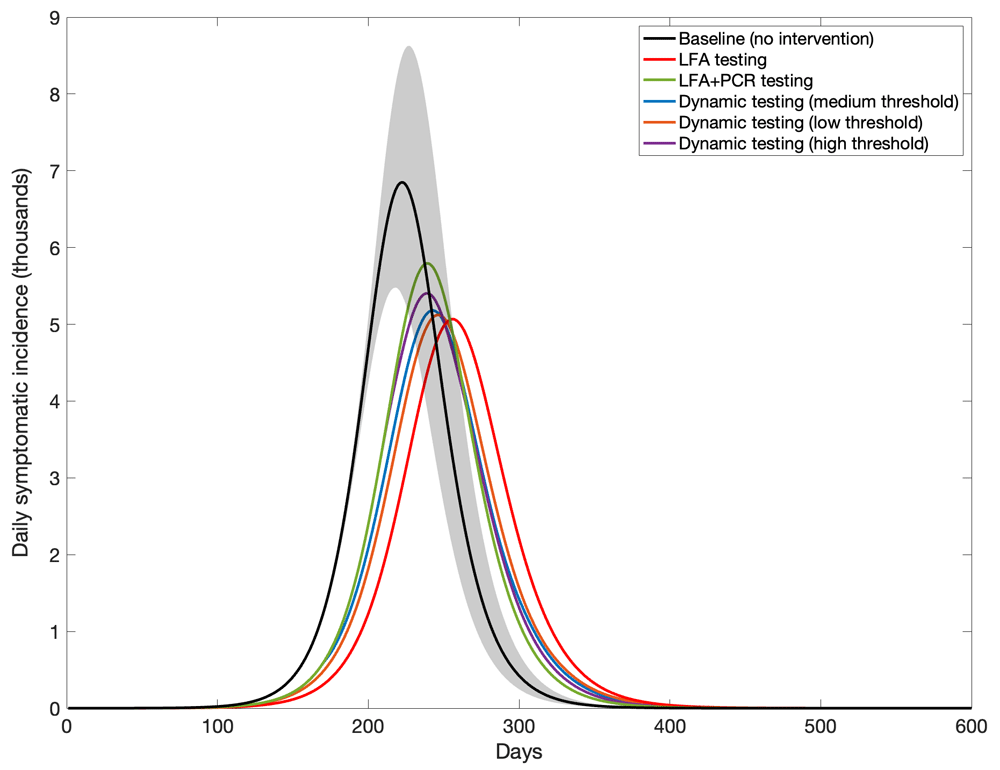

Figure 2. Simulated daily incidence under different LFA scenarios.

Curves show simulations consistent with the ‘second wave’ of COVID-19 in India, under the following testing scenarios: ‘LFA testing’ denotes the sole use of LFA for testing with no follow-up confirmation; ‘LFA+PCR’ denotes the use of PCR to confirm LFA-positive results; ‘Dynamic testing (medium threshold)’ denotes PCR confirmation of LFA-positives as long as LFA positivity results are below 50% of peak positivity in an unmitigated wave (no confirmation otherwise); and ‘low’ and ‘high’ thresholds correspond respectively to 10% and 90%. In all scenarios we assumed that a proportion 0.5% of the population is tested with LFA, at random each day, regardless of symptoms, and that all diagnosed with SARS-CoV-2 are isolated. Solid lines show central estimates, and shaded areas show 95% uncertainty intervals (for clarity, only shown illustratively in the baseline scenario).

Table 1. Summary of epidemiological impact and resource use.

Entries show values summarising the outcomes in Figure 2Figure 3.

Incidence reduction
(compared
to baseline scenario)
[95% CrI]
PCR
consumption
Unnecessary
isolations (relative
to population size)
Dynamic (medium
threshold)
9.20%
[6.14%-12.36%]
1.8 million1.10%
Dynamic model
(low threshold)
9.70%
[6.23%-13%]
830,0001.70%
Dynamic model
(high threshold)
7.71%
[5.28%-10.64%]
1.76 million0.45%

Figure 3 shows two proxies of resource requirement, namely PCR test volume and unnecessary isolations. An LFA+PCR strategy requires the greatest number of PCR tests (green curve, left-hand panel), while also incurring the fewest unnecessary isolations (right-hand panel). On the other hand, while an LFA-only strategy naturally incurs no PCR usage, it also leads to over 5% of the population being unnecessarily isolated (red curve, right-hand panel). In both cases, dynamic strategies can mitigate these costs substantially. For example, a medium-threshold strategy, one that requires PCR confirmation only when the proportion of LFA positivity is below 50% of peak positivity in an unmitigated wave, would require a total of 1.8 million PCR tests (compared to 2.5 million for an LFA+PCR strategy), and would incur unnecessary isolations for 1.1% of the population.

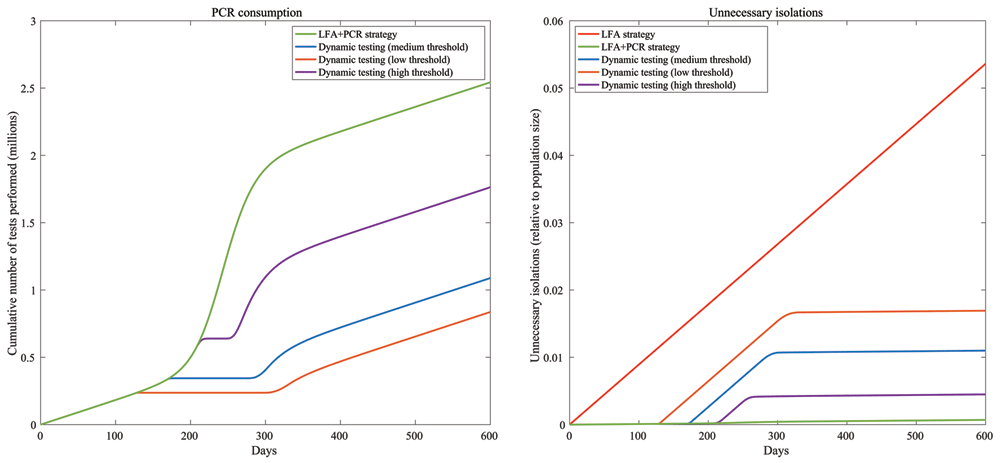

Figure 3. Proxies for costs of different testing strategies.

The left-hand panel shows the cumulative number of PCR tests used over time, while the right-hand panel shows the cumulative number of unnecessary isolations over time (arising from false-positive diagnoses of SARS-CoV-2), as a proportion of the population.

Figure 4 compares strategies in terms of the cases averted per PCR test used (left-hand panel), and cases averted per unnecessary isolation (right-hand panel). In both cases, higher values correspond to more favourable strategies. Results echo the overall trade-off shown in Figure 3: that in general, strategies that are favourable in terms of cases averted per PCR test used are less favourable in terms of cases averted per unnecessary isolation. Quantitative estimates behind these results are listed in Table 1.


Figure 4. Proxies for incremental cost-effectiveness ratios (ICERs) under the different testing strategies.

As a measure of health gains for the denominator for ICER calculations, we estimated the symptomatic cases averted relative to a scenario of no community-level LFA testing. In each plot, the horizontal red line shows median estimates; the upper and lower edges of the blue polygons show 2.5th and 97.5th percentiles; and the upper and lower ‘whiskers’ show the extreme values. The left-hand panel shows ICERs in terms of cases averted per PCR (polymerase chain reaction) test used, while the right-hand plot shows them in terms of cases averted per unnecessary isolation. Strategies shown are as follows. LFA: using LFA (lateral flow assay) only, with no PCR confirmation. LFA+PCR: confirming all LFA-positive results with PCR. Dynamic: Strategies where the need for PCR confirmation of LFA-positives is lifted when LFA test positivity exceeds a given threshold, here showing ‘low’, ‘medium’ and ‘high’ thresholds as described in the main text.

Discussion

In pandemic response, rapid testing at the community level might offer important opportunities to reduce transmission, but only if there are ways to mitigate false-positive results within the bounds of health system constraints. Building on previous work, our analysis illustrates that some options for doing so could be provided by dynamic strategies for the use of PCR testing for confirmation of positive LFA results, during the delta wave in New Delhi, India. In particular, our analysis found that strategies that impose a threshold for LFA positivity, above which PCR confirmation of positive LFA results is no longer necessary, can offer a compromise between the large number of PCR tests required when confirming all LFA positives with PCR, and the large number of unnecessary isolations when using LFA alone (Figure 3 and Figure 4).

In any given setting, the specific choice of threshold will depend on the local conditions and constraints; in particular, a key consideration is whether PCR capacity is a more pressing constraint than the need to avoid unnecessary isolations. Where PCR capacity is tightly constrained, a more liberal threshold for removing the requirement for PCR confirmation would be favoured. By contrast, where isolation capacity is tightly constrained, this threshold should be more stringent. In order to translate these findings into an appropriate choice of threshold for any given setting, further work would need to combine the costs of PCR usage and unnecessary isolations on a common footing.

A benefit of this analysis is that we have modelled dynamic thresholds depending on the LFA positivity rate at any given point in time. Adapting LFA strategies in response to this rate therefore requires LFA test results to be reported, at least in a representative proportion. While reporting of home-based test results is currently recommended, it is generally not done23. In the future, LFAs having the capacity to report test results automatically could improve efforts to monitor the spread of infection and adapt testing strategies accordingly.

Importantly, while we have evaluated the role of LFAs in testing for SARS-CoV-2, the principle of this analysis – evaluating tradeoffs between rapid isolation and reduction of false-positives through confirmatory testing – applies to epidemics of other infectious diseases as well. Often, LFAs aim for speed and high sensitivity but may have insufficient specificity to take definitive action without confirmatory testing24. As such, analyses such as this one, in which we assess tradeoffs between speed of testing and the cost of false-positive results, will be relevant as novel LFAs are developed for other infectious diseases.

As with any modelling analysis, our work has some limitations to note. Our model assumes a simplified, homogenous population structure, whereas in reality, in the first few waves of COVID-19, the spread of SARS-CoV-2 was more extensive in urban slum populations than elsewhere in India25. Concentrating on the impact of testing strategies, we do not model the potential impact of other measures such as social distancing and lockdowns26 or indeed of vaccination. In reality, in the wake of the devastating ‘delta wave’ in India, the rapid rollout of the world’s largest COVID-19 vaccination programme27 had substantial impact on disease burden28. We also do not model relationships between infectivity and LFA detection. While LFAs are not as sensitive as PCR, there is evidence to suggest that those cases of SARS-CoV-2 that are detectable by LFA are also the most infectious11,29,30, and we would expect such variation to increase the epidemiological impact of LFA-only strategies from that estimated here. We only evaluated dynamic strategies that changed the sequence of testing with the probability of a positive test. Other dynamic strategies could also, for example, impose a requirement for isolation while awaiting confirmatory testing, rather than removing the need for a confirmatory test. We have focused on one example of the use of LFAs and PCR tests: identifying conditions where PCR need not be used to confirm LFA positives. For future work, other possible areas relevant to transmission include the use of LFAs for surveillance during periods of low infection activity, and switching to PCR confirmation of LFA negatives during the epidemic peak. In all cases, limiting the requirement for PCR testing will be an important consideration for LMICs.

The model was calibrated to reflect transmission dynamics representative of the delta wave in India, rather than the more recent omicron wave, because at the time of the analysis, the omicron wave was still new and developing. Since the omicron variant was found to be more contagious than the previous ones, we believe we believe our results would show higher epidemiological impact from utilizing LFAs without PCR confirmation in order to isolate infected individuals as quickly as possible.

In conclusion, rapid tests can play an important role in reducing opportunities for transmission, but their use must be planned carefully in order to avoid undue adverse impacts, either on the population or on the healthcare system. Mathematical modelling can be a helpful tool for weighing these trade-offs, not only for COVID-19, but also for future pandemics.
