Enhancing maternal health service utilization among highly vulnerable pregnant women through a human-centered design process: Study protocol for a quasi-experimental study in Oromia, Ethiopia

Study objectives

The objective of this study is to evaluate the effectiveness of an intervention package, developed through a human-centered design (HCD) process, in improving maternal health service (institutional delivery and ANC) uptake among highly vulnerable pregnant women living in rural areas of Ethiopia. Specifically, the study objectives are:

Study setting

Our study sites are in Oromia, the most populous region in Ethiopia. Within this region, we selected two woredas (administrative units below the zone, which is below the region) for our intervention sites. Sirraro and Shalla woredas were selected as intervention arms, and Gera and Shebe woredas as control arms. The study sites were not randomly selected due to the on-going security issues in Ethiopia.

Study design

A community-based quasi-experimental study design was chosen to assess differences in key variables between the intervention and control arms. We chose a quasi-experimental design for several reasons. We lacked information about clear randomization unit given the characteristics of individuals or clusters (woredas), and it was likely that many woredas in Oromia region are not homogenous towards our outcomes of interest. Another reason was due to resource constraints, as we did not have a sufficient number of woredas in our study to conduct a randomized trial design. The study included two waves of data collection from a panel of recruited pregnant women at Phase 1. We attempt to leverage Phase 1 findings to inform the development of study tools and identify factors affecting implementation to provide insights into the improvement our intervention at Phase 2. This study is registered at ClinicalTrial.gov (NCT05907720).

We conducted the baseline survey of pregnant women enrolled in intervention and control arms in January 2024 and are in the process of conducting a midline assessment for Phase 1. After the baseline survey, we implemented a set of HCD prototype solutions in the intervention arm only, keeping standard of usual care intact in the control arm. After the 4-month period of HCD solution implementation, we are conducting the midline survey among the same women in the panel from both the intervention and control arms. The midline assessment includes in-depth interviews with purposively selected pregnant women from the panel and health workers who engaged in implementation.

In Phase 2, we will conduct a post-only study with a new sample of vulnerable pregnant women who will be recruited after the implementation of refined HCD solutions. We will apply the same recruitement procedures as those for Phase 1. We will compare outcomes between the intervention and control arms at end-line, and the end-line findings will also be compared with baseline to identify whether refined solutions bring greater impact than initial solutions did in Phase 1. Thus, our overall study design includes a total of three assessments, baseline and midline assessments in Phase 1 and end-line assessment in Phase 2. The study design is further described in Figure 1.

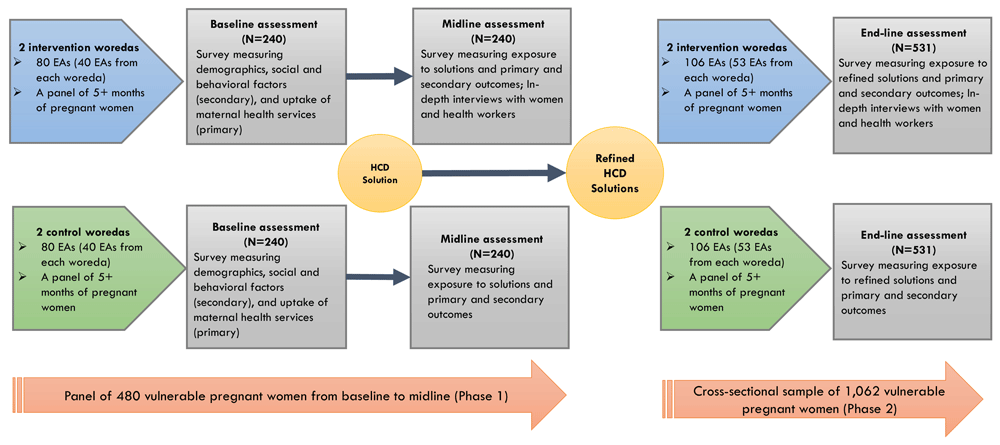

Figure 1. Quasi-experimental evaluation study among vulnerable pregnant women.

Sample

Our primary target participants are vulnerable pregnant women aged 15–49. For consent administration, we segmented adult pregnant women aged 19 and above, pregnant adolescent girls aged 15–18, and service providers. Service providers, such as midwives, Health Extension Workers (HEWs) and Health Development Armies (HDAs) who engage in the study will be recruited for qualitative assessment at midline (Phase 1) and end-line (Phase 2). Table 1 below summarizes inclusion and exclusion criteria for each sample population.

Sample size calculation

We considered institutional delivery (a major outcome variable) as a basis for the sample size calculation. To estimate sample size, we took account of our longitudinal design that measures the same subjects before and after the intervention and assumed an intervention effect of 9% in improving institutional delivery beyond the current 48%³. Assuming a p-value of 0.05, interclass correlation coefficient (ICC) of 0.009, a power of 80%, a total of 240 pregnant women from the intervention arm and another 240 pregnant women from the control arm are needed, for a total sample size of 480 pregnant women in each study phase. The assumptions of sample size also took account of feasibility and sample characteristics. The number of enumeration areas (EAs) this phase can reach is 80 per study arm, and approximately 5 women are expected to be eligible in each EA. Based on the cross-sectional study design in Phase 2, we assumed 9% detectable difference between the study arms with an 80% power, which led to a sample of 531 for each study arm, taking account of 10% non-response rate. Approximately 106 EAs will be reached from given the number of eligible women in each EA. Both intervention and control arms will have an equal sample size in each phase, having 1:1 ratio of women between the intervention and control arms. As such, the total number of women to recruit across study phases is 1542.

For qualitative assessments, a total of 32 health workers engaged in implementation will be purposively sampled for in-depth interviews at post-intervention assessment in each phase. The interviews with health workers will explore the feasibility, acceptability, and scalability of the prototype solutions along with perceived program effects. An equal number of health workers will be interviewed at midline (post-intervention of Phase 1) and end-line (post-intervention of Phase 2). The interviewees selected for Phase 2 may be the same service providers recruited from Phase 1 depending on their availability and engagement in the program. We have chosen 32 as the target sample size based on our best estimate about achieving data saturation. In each phase, we will also interview 20 pregnant women from the panel who recently delivered and were exposed to our HCD solutions. The qualitative iterviews will be conducted only in the intervention sites.

Recruitment

After obtaining a list of all interested women from HEWs and HDAs, data collectors will visit the women in person to screen their pregnancy status and vulnerability level to assess their eligibility. With the woman’s verbal consent, the data collector will administer the pregnancy screening tool to identify her pregnancy status. Only women 5+ months of pregnancy and aged 15–49 are considered eligible. If eligible, she will then be screened for her vulnerability level, assessed through the vulnerability screening tool. Those considered to be moderately to highly vulnerable are eligible and entered into the sampling frame. All responses to the screening questions will be entered into the data collectors’ mobile phone application that automatically determines pregnant women’s eligibility during the visit. Women who score at most 13 out of the maximum 20 vulnerability screening questions will be identified for the study participant. For the qualitative assessment, recently delivered women who receive our intervention and health workers in the intervention sites will be recruited. Purposive selection of the sample will take into account the extent to which women are exposed to the intervention. We will prioritize recruiting women in earlier gestational ages (5^th month or earlier) since women in late pregnancy terms may not be fully exposed to our solutions.

All eligible women will be entered into our sampling frame. After listing eligible pregnant women, we aim to recruit approximately three women per EA to achieve our target sample size. If an EA has five or fewer eligible women, they will be all contacted for recruitment. If there are more pregnant women than the minimum required number of pregnant women, we will randomly select the required number. If a woman is not interested or available for participation, we will contact the next randomly selected woman for recruitment. Recruitment will continue until our sample size is reached, expanding to other EAs if necessary. Recruitment in Phase 1 has been completed in this way, and Phase 2 recruitment will follow this procedure.

Data collection and measurement

Survey interview. All participant from Phase 1 and 2 will undergo a one-on-one survey interview to assess sociodemographic information, psychological factors, social and structural factors, and maternal health service utilization. A structured interview will be administered by a local data collector in the local language. The survey will capture the self-reported place of the most recent childbirth along with uptake and frequency of ANC visits during the most recent pregnancy. Secondary outcomes include knowledge, attitudes, and perceptions about maternal health service utilization, social norms, gender norms, spousal dynamics, decision-making, and community and structural factors. Midline (post-intervention in Phase 1) and end-line (post-intervention in Phase 2) assessments will additionally include questions measuring program exposure.

Qualitative interview. Purposively selected women from the study participants (n=20) along with health workers (n=32) engaged in the program will participate in an in-depth interview. Given the 4-month duration of program implementation among pregnant women in their 5^th or higher months of pregnancy, interviews will be administered to recently delivered women inquiring about their perceived effects of the intervention on the place of childbirth and ANC uptake during pregnancy. Additionally, the interview guides for women and health workers will contain question around key implementation research outcomes, including acceptability and feasibility, to identify any similarities and differences arising across different types of interview participants.

Intervention

HCD workshop procedure. In Phase 1, prior to the HCD process, an extensive desk review and secondary data analysis were conducted to identify key drivers of vulnerability affecting uptakes of maternal and child health services. Vulnerability driving factors, such as women's illiteracy, distance from health facilities, high parity, decision making power, exposure to media, and lack of household assets were identified as major barriers to maternal health service use. Based on these factors, a vulnerability screening algorithm was developed to identify the target population of rural vulnerable pregnant women. From the evidence synthesis, the two initial design challenges focusing on ANC and institutional delivery were also prioritized: 1) reimagining how to support pregnant women to attend ANC, and 2) reimagining how to support pregnant women to deliver in a health center. Then, a five-stage design thinking process was implemented, using empathy, definition, ideation, prototyping, and testing stages. In this process, we engaged key stakeholders, such as vulnerable pregnant women, their husbands, and healthcare providers in co-creation workshops.

The co-creation workshops were separately organized for vulnerable pregnant women, husbands of vulnerable pregnant women, and healthcare providers to form homogeneous groups and avoid power dynamics for better flow of information and ideas. A total of eight design teams, each comprising six to eight design team members, went through the design thinking process for three days. A core team that involved senior design staff further synthesized the outputs of the workshops. Insights around limited household support for pregnant women, low awareness on importance of healthcare services, demotivated healthcare providers, and poor service quality were harvested from these workshops.

Development of HCD solutions. In the prototyping phase, our team prioritized potential prototype solutions based on an impact and feasibility matrix. The matrix served as a grading system to narrow down prototype solutions from those that were initially ideated among workshop participants based on the two dimensions. According to participants’ perceived impact (low or high) of solutions on institutional and ANC uptake, along with perceived feasibility level (less or more likely to be implemented) pertaining to resource constraints, three solutions were selected: audio programs that encourage couple communication, visual print materials, and home-to-home visits by community health workers.

The study team developed two pre-recorded audio programs containing real stories of pregnant women in the local language of the target area. The first audio session focuses on the importance of ANC through the narration of a couple's story, highlighting their communication and the husband's support in household tasks, as well as accompanying the wife to ANC visits. The second audio session focuses on the importance of institutional delivery from a story of a pregnant woman. It describes her first childbirth at home, which was a painful and difficult experience. The story then progresses to her second childbirth experience at a health facility, where she was well-prepared and supported by her husband. Furthermore, the solutions included two visual print materials (pamphlets) with contents that reinforced the audio messages about ANC and institutional delivery. These prototypes were tested through focus group discussions with pregnant women, their husbands, and community volunteers, and then refined based on user feedback. All five of the design thinking stages were implemented in the two study sites (Shalla and Siraro) of Oromia regional state.

For Phase 2, we aim to leverage implementation research data obtained from midline qualitative interviews at Phase 1 to finalize our HCD plans. Solutions from Phase 1 will be revisited by a newly organized design team to collectively explore the most effective and feasible implementation strategies. We will conduct the five-stage HCD process, sharing Phase 1 findings with workshop participants and engaging prior end-users. Since Phase 2 will focus on refining and strengthening the existing solutions, some of the HCD activities (e.g., “How Might We” statements and ideation) are expected to center around establishing strategies for improving the materials, delivery, and format of the solutions, ultimately to integrate our solutions into the existing health system.

Implementation plan

As part of the implementation of the interventions in Phase 1, the study team conducted an orientation training for HEWs and HDAs (known as Hadha Gare locally) to equip them with the skills needed to identify vulnerable pregnant women using a vulnerability screening tool and to effectively implement the solutions. The prototype solutions were delivered by the trained HDAs with the help of HEWs for a duration of four months from February to May 2024.

Prior to implementation, HDAs identified vulnerable pregnant women within their catchment area. They then scheduled an appointment to facilitate family discussions about the prototype solutions. The audio programs and print materials were intended to be delivered throughout five home visits by HDAs. For women whose gestational age was high (8-9 months), we aimed to provide audio and print materials on institutional delivery only through three home visits.

In the first visit, HDAs provided the household with an audio device containing the pre-recorded ANC program and gave instructions on how to engage in couple communication. After two to three days, HDAs revisited the household to inquire about questions or concerns from the couple, collected the device, and provided a print material to reinforce the audio content. HDAs then conducted a third visit to gather feedback from the couple and provided the second audio device that contains a story of institutional delivery. At the fourth visit, HDAs collected the second device and provided the second print material to reinforce institutional delivery messages from the audio program. Finally, HDAs conducted the follow-up visit, encouraging the pregnant woman to utilize health services until she delivers and addressing remaining concerns among the couple. All of the home visits required husbands’ presence given that the solutions were designed to facilitate couple communication, which would in turn optimize male involvement in maternal health service potentially through shifting social and gender norms.

To ensure seamless implementation of the interventions, the study team conducted close monitoring of activities that included site review meetings with implementing partners at the primary health care unit (PHCU) level and on-site supportive supervision to identify gaps, provide technical support, and address any identified implementation challenges. Key implementation outcome indicators, such as the number of pregnant women reached with ANC and institutional delivery audio programs and print materials, were regularly collected through the KoboCollect mobile platform.

The Phase 2 implementation plan may follow a similar procedure. Detailed plans will be determined based on information about how the current implementation scheme was acceptable and feasible among health workers and implementing partners. Specifically, the Phase 1 qualitative interview data on implementation research indicators will inform Phase 2 strategies.

Data analysis plan

Quantitative data analysis. First, we will conduct a series of bivariate tests, including chi-square and t-tests, across treatment and control arms based on baseline and endline data. The purpose of conducting bivariate tests is to identify differences between the study arms for each potential confounding factors, given the possibility of quasi-experimental design not ensuring baseline matching between intervention and control arms. If any differences are observed, they will be controlled for in subsequent regression analyses. We will also identify types of missing data to determine whether missingness occurs in a systematic manner, which will help us determine the appropriate remedial measure to adopt.

Since this project will conduct various implementation activities at the PHCU level, the analysis will take account of clustering at the level. Further, because kebeles (akin to villages) are clustered within PHCUs, we will also consider clustering at the kebele level. Given the nested nature of this study, multi-level modeling (MLM) is considered appropriate because it provides both cluster-specific and population-averaged estimates simultaneously by defining both random effects and fixed effects, respectively. Prior studies that represented similar scenarios, however, have shown that estimated coefficients and standard errors are usually not biased, even with a sample size as low as 5 to 10 at Level 1^27,28, and with many independent variables and interaction terms²⁹.

Nevertheless, this study will use an MLM framework to assess the intervention effect based on a difference-in-difference analysis by computing differences between baseline and midline within each arm, and then test this difference between intervention and control arms. A fixed effects model will first be used to observe this effect of the intervention. Kebele and PHCU will then be included as random intercepts to account for clustering within these levels. The estimated variance for random effects will show the amount of variability in the outcome that is explained by the clusters (i.e., how much of institutional delivery uptake is attributed to a kebele). If the coefficient of the interaction term is significant with the significant model fit, we will observe significant program effects. The identical analyses will be conducted with 4+ANC visits as the outcome variable. Other covariates will be included by comparing goodness-of-fit statistics (e.g., AIC, BIC) to improve the model fit. Proper model specification and diagnostic tests will be conducted to enhance the robustness of the results. Phase 2 data analysis focus on comparing service utilization between intervention and control arms. Since we expect that study effectiveness will be stronger in Phase 2 with the implementation of enhanced solutions, we will additionally compare the study outcomes with baseline at Phase 1, controlling for potential key covariates including women’s education, parity, financial stability, geographical areas, and distance to health facilities.

Qualitative data analysis

Translated transcripts of the in-depth interviews will be uploaded to a qualitative software package that will be used to facilitate data management and organization. After reading over a few of the interview scripts for each type of stakeholder, two analytical frameworks (one for pregnant women and one for health providers) will be developed using deductive and inductive approaches. The frameworks will describe themes, any sub-themes, codes, and illustrative quotes that would supplement each identified theme/sub-theme. Along with the interview data, field notes from monitoring visits, scheduled 4 times throughout implementation, will additionally reviewed since they can provide rich context for the implementation process itself. Field notes would capture the trajectory of implementation as to how stakeholders engage with the process over time and whether specific implementation strategies would effectively address any challenges arising from the field.

Codes related to implementation research outcomes will be pre-defined, but iterative coding will allow new ideas to emerge. Other themes related to change in social factors are expected to emerge from data and will be identified through a process of open coding. Throughout the coding process, memo writing will be conducted simultaneously. Memo writing refers to systematic and continuous note-making during analysis³⁰. While it has been primarily used in grounded theory, it is useful for a wide variety of qualitative methods because it provides researchers with an opportunity to critically reflect on how they view and treat data as well as any changes in decisions made³¹. Iterative coding and memo writing would enable constant comparisons of the data and other reflections over the course of the analysis. Two to three coders will analyze the data to achieve inter-coder reliability. The qualitative data management and analysis will adhere to the Consolidated criteria for reporting qualitative research (COREQ) guideline³².

Ethics approval

This study was approved on October 5, 2023 by the Ethiopian Public Health Institute (EPHI), a governmental public health institution located in Addis Ababa, Ethiopia (EPHI-IRB-510-2023). The first phase of the study was also reviewed and approved by the Johns Hopkins Bloomberg School of Public Health Institutional Review Board (IRB00024473) on July 18, 2023, and the approval was extended for Phase 2 on July 16, 2024. In order to conduct HCD processes, we obtained ethical approval for public health practice by the Johns Hopkins Bloomberg School of Public Health Institutional Review Board (IRB00023366) on January 4, 2023. Any changes to study protocol will be communicated with these regulatory entities for approval immediately.

Study dissemination

We will disseminate our work at conferences and peer-reviewed academic journals. We will also share our findings with program stakeholders, including government officials, health workers, and community workers.

Participant consent and confidentiality

All participants will be interviewed at their convenient location to ensure privacy. Informed consent will be obtained in Amharic or Afaan Oromo by local data collectors who are externally hired and trained by the Center for Communication Programs (CCP) Ethiopia study team. Data collectors will read the consent document to participants, who will then give verbal consent. Participants under the age of 19 are required to obtain the permission of one parent or legal guardian. Obtaining verbal consent is considered appropriate given the low level of literacy and education among study participants. The ethics committees from the team’s primary institutions approved administrating verbal consent. All data from participants will be de-identified by the study team and stored in secure, password-protected computers accessible only by the study team and its affiliates.

Study status

Our study is currently at the post-intervention evaluation stage of Phase 1. We completed the baseline data collection and intervention implementation. The midline (post-intervention) assessment of Phase 1 is ongoing.
