Adoption and uptake of the lateral flow urine LAM test in countries with high tuberculosis and HIV/AIDS burden: current landscape and barriers

Introduction

Tuberculosis (TB) is the leading cause of both hospitalization and death among people living with HIV/AIDS (PLHIV)¹. PLHIV are 26 times more susceptible to TB infection than those who are seronegative and in 2018, the World Health Organization (WHO) estimated 860 000 PLHIV had developed active TB disease². Further, over a third of deaths in PLHIV are attributed to TB co-infection³. Yet, according to a systematic review of post-mortem studies in resource-limited settings, TB was undiagnosed in PLHIV until the time of death in 46% of cases⁴.

The high rate of undiagnosed TB is partially a function of the available TB diagnostic tests that detect Mycobacteria tuberculosis (M. tuberculosis) bacilli in respiratory samples, such as sputum. For many PLHIV, producing sputum is difficult and bacterial burden is low, resulting in diagnostic test sensitivities that are lower than in HIV-uninfected individuals⁵. As well, PLHIV often present with extrapulmonary TB, for which sputum is not the correct sample.

Next generation assays such as Xpert MTB/RIF Ultra, a WHO-recommended PCR-based rapid TB test, offer improved diagnostic accuracy over conventional smear microscopy⁶, but are often not available where patients first seek care due to infrastructure needs and relatively high cost^7,8. Until accurate diagnostic tests for PLHIV become widely accessible, many individuals with TB will continue to be missed.

Lipoarabinomannan (LAM) is a component of the M. tuberculosis cell wall that can be detected in urine^9,10. The first commercially available TB test based on urinary LAM detection is the Determine™ TB LAM Antigen assay (Alere-LAM), originally manufactured by Alere Inc. (now produced by Abbott). Available since 2013, this lateral flow LAM strip test requires 60 μl of urine and provides results in approximately 30 minutes¹¹. Besides a micropipette, no equipment is required, allowing its placement at the point-of-care, with a low cost of about 3.50 USD per test. Because the assay detects LAM in the urine, it is more likely than other sputum-based TB tests to diagnose PLHIV with extrapulmonary or advanced disease since urinary LAM concentrations are higher at lower CD4+ cell counts¹².

In 2015, the WHO published guidelines recommending the Alere-LAM test be used to assist TB diagnosis in hospitalized HIV-positive patients with TB symptoms and CD4+ cell counts less than or equal to (≤) 100 cells/µl, or who are seriously ill regardless of CD4+ cell count. Based on generalization of data from inpatients, these recommendations could be extended to adult HIV-positive ambulatory (outpatient) cases and, with discretion, to HIV-positive children while acknowledging lower specificity in this group¹³.

In 2019, the Guidelines were updated to indicate the increased strength of the recommendation for Alere-LAM in hospitalized HIV-positive patients with CD4+ counts ≤ 200 cells/µl, or who are seriously ill regardless of CD4+ cell count; in this setting, the test is now more clearly recommended for children and adolescents. With respect to ambulatory settings, Alere-LAM testing is conditionally recommended for severely ill HIV-positive outpatients of all ages with CD4+ counts ≤ 100 cells/µl regardless of signs and symptoms, or any outpatient with TB symptoms. Use of Alere-LAM is discouraged without assessment of patient signs and symptoms and without knowing CD4+ cell count¹⁴. The Cochrane systematic review and meta-analysis commissioned for the update found the pooled sensitivity of Alere-LAM was 42% (95% credible interval [CrI]: 31–55%) and pooled specificity was 91% (95%CrI: 85–95%) from eight studies and 3449 participants. In hospitalized in-patients, pooled sensitivity was 52% (95%CrI: 40–64%) versus 29% (95%CrI: 17–47%) among outpatients¹⁵.

Despite the existence of these Guidelines, a 2018 Médecins Sans Frontières (MSF) report¹⁶ as well as a Treatment Action Group (TAG) Activist Guide to TB LAM¹⁷ found that very few high burden countries had adopted Alere-LAM in their national policies or articulated plans to scale up use of the test. We conducted a questionnaire-based study in 31 high TB and HIV/AIDS burden countries to assess the current landscape and identify barriers to the adoption of Alere-LAM.

Methods

A semi-structured questionnaire was emailed to staff and affiliates of National TB Programs (NTPs) or HIV/AIDS Programs (NAPs), Ministries of Health, and TB or HIV institutes of 31 high TB/HIV burden countries, primarily identified from prior country surveys. The questionnaire is available as Extended data¹⁸. Countries were chosen based on 2015 WHO classification¹⁹. Questionnaire responses were collected between November 2018 and December 2019 and participants were contacted an average of three times for questionnaire responses. In cases of unclear comments, respondents were contacted for follow-up. By filling in the questionnaire, respondents consented for the provided data (de-identified) to be used for research purposes only. As the questionnaire only collected country level data, no ethical approval was required.

The questionnaire included ten questions and space for respondents to provide additional comments. Questions pertained to country adoption of Alere-LAM policies; current use of Alere-LAM; location of current testing; testing algorithms and use-cases; possible future test implementation and use; and barriers preventing Alere-LAM uptake and routine use. Respondents had the option to choose from a list of 17 suggested obstacles or could describe other constraints.

Results

Out of the 31 high TB burden countries that were contacted, we received questionnaire responses from 33 individuals representing 24 countries (77%). The majority of respondents were affiliated with country NTPs (24/33, 73%), with five respondents from NAPs (5/33, 15%), two respondents with joint affiliations (2/33, 6%), and one individual from neither Program (1/33, 3%). All questionnaire responses are available as Underlying data¹⁸.

Of the 24 countries, 11 (46%) had Alere-LAM policies at the time of questionnaire response. Of these 11, six countries had Alere-LAM policies in both NTPs and NAPs (55%), three countries had policies within the NTP only (27%), and two countries reported an Alere-LAM policy in their NAP only (18%) (Table 1). But inclusion in policy does not mean actual usage. Notably, only four countries that had adopted an Alere-LAM policy within the NTP and/or NAP had implemented testing. One country, the Democratic Republic of Congo (DRC) was utilizing Alere-LAM testing without a policy in either Program (Figure 1). When asked if they were planning to use Alere-LAM in the near future, 15 countries (15/24, 63%) responded yes (Table 1). Altogether, 20 of 24 countries (83%) were currently using or were planning to deploy Alere-LAM testing.

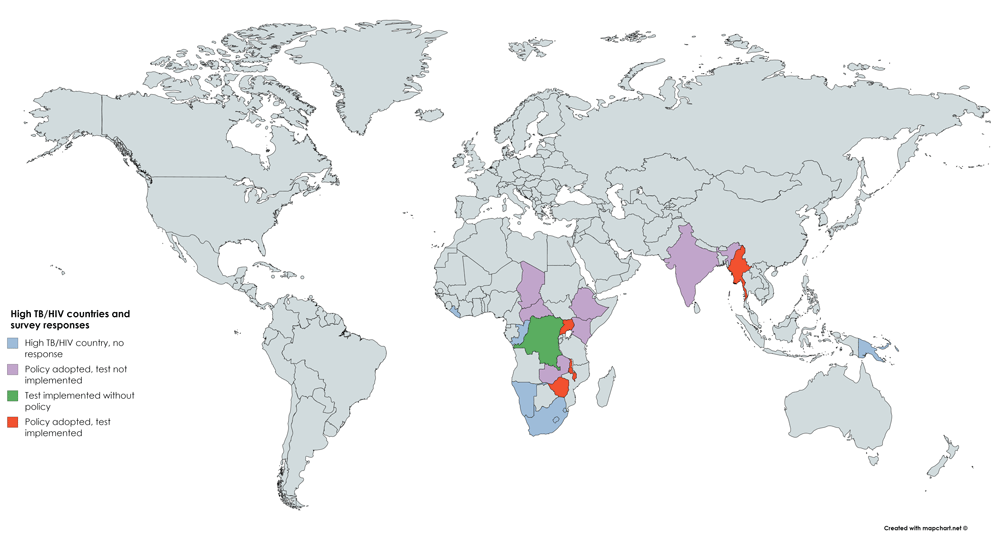

Figure 1. High TB/HIV burden countries contacted for survey.

Status of Alere-LAM policy adoption and test implementation are as indicated by colour. Blue indicates countries that were contacted but did not respond to the survey. Purple indicated countries with an Alere-LAM policy but that have not implemented the test. Green indicates that Alere-LAM testing has been implemented without a policy. Red indicates that the country has an Alere-LAM policy and testing has been implemented.

Respondents from ten of the eleven countries with Alere-LAM policies provided details regarding their testing algorithms with respect to the then-current 2015 Guidelines (Table 2)¹³. As expected, policies in eight of ten countries (80%) followed these guidelines. That is, eight of ten countries were using the Alere-LAM test in hospitalized PLHIV with CD4+ counts ≤100 cells/µl, and seven of ten (70%) countries were using the test in seriously ill PLHIV inpatients (Table 2). Notably, in Mozambique, the NAP is discontinuing CD4+ cell testing, so CD4+ cell count was not part of their Alere-LAM testing algorithm. Six countries (6/10, 60%) were using the test in children. Four countries were using the Alere-LAM test in outpatient scenarios¹⁴.

Availability of testing varied substantially across countries. Eight countries reported the setting where Alere-LAM testing was available (Table 2). In Chad and Uganda, Alere-LAM was most widely available, as testing is offered in all hospitals and antiretroviral treatment (ART) centers. Malawi and Zimbabwe provide Alere-LAM testing at all hospitals. Myanmar and the DRC provide Alere-LAM testing at a limited number of hospitals or ART centers. An Alere-LAM testing pilot program was limited to 12 hospitals in Kenya. Mozambique reported that they had been using the Alere-LAM test within a research context only (i.e., not a pilot). Botswana, Central African Republic, and India have Alere-LAM policies, but the test is not yet in use and eventual test use locations were not reported.

Almost all countries (21/24, 88%) identified barriers preventing implementation of Alere-LAM (Figure 2). Selected comments from questionnaires are quoted in Box 1. Budget limitations were the most reported barrier (10/21, 48%). Some countries had indicated that they were currently consulting with financial partners to support uptake or that they hope to use Alere-LAM as soon as funding becomes available in their country (Figure 2). The second most reported barrier was that pilot studies or evaluations within their country needed to be conducted. In that context, some countries that reported this explanation already had ongoing studies, but were waiting on results to inform their guidelines, determine the best use and placement in national diagnostic algorithms, and assess accuracy along with various operational issues.

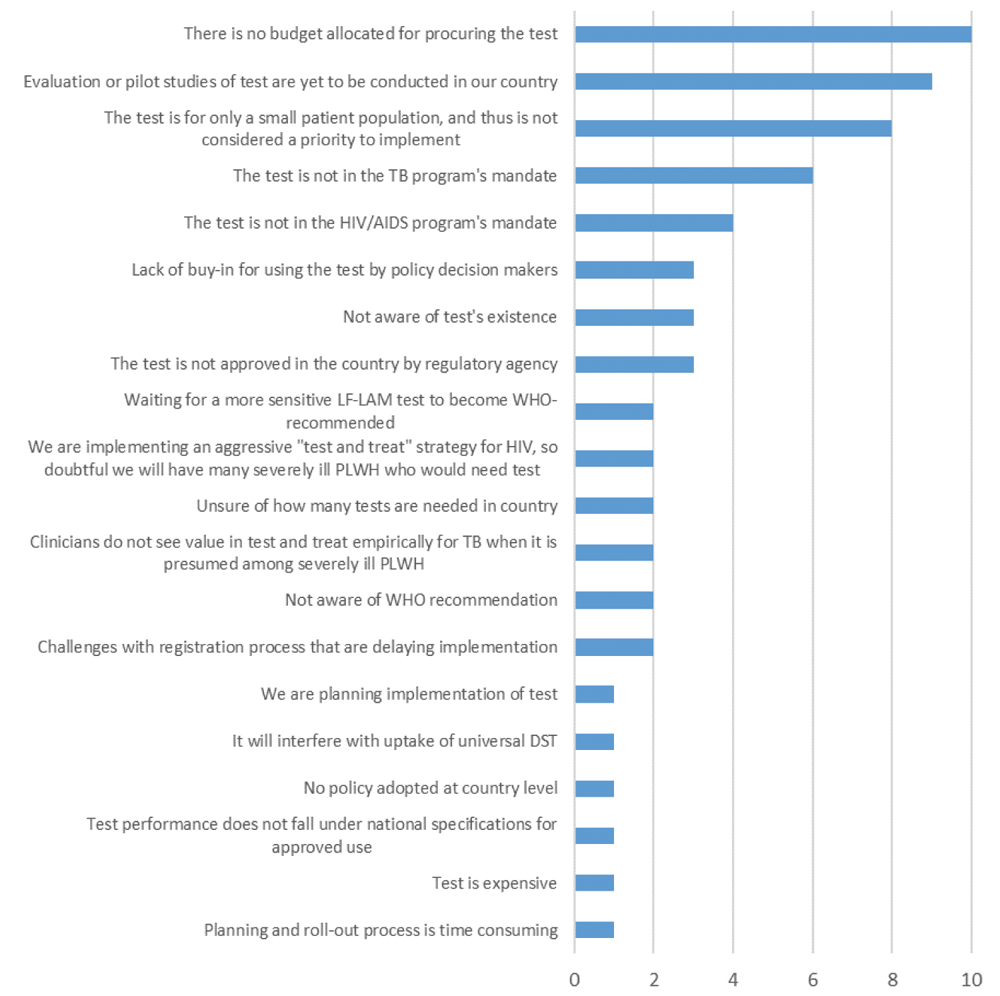

Figure 2. Barriers to Alere-LAM urine test use.

Questionnaire included a set list of barriers and allowed respondents to report other barriers not included. Unique barriers per country are reported here. For example, if two surveys from one country listed the same barrier, it was only included once.

Some countries had indicated that implementing Alere-LAM was not a priority because of the relatively small size of the population affected: this was the third most common barrier. In certain cases, this belief prevailed because NTPs/NADs did not expect a high number of seriously ill PLHIV cases due to aggressive existing “test and treat” programs. Other barriers identified were more administrative in nature. For example, the purview of Alere-LAM testing was reportedly not within the NAP or NTP, Alere-LAM was not approved by country-relevant regulatory agencies, challenges persist with registering the test in the country, and estimates of the number of required tests needed for country-wide implementation were reported as uncertain.

Discussion

Despite the positive WHO recommendations and evidence demonstrating that Alere-LAM testing reduces mortality in the intended use population²⁰, our analysis is consistent with previous reports^16,17 in finding that Alere-LAM use remains low among high TB/HIV burden countries. As we observed directly from the questionnaire responses, existence of policy for a test does not guarantee routine use, as there are numerous barriers to overcome before country-level implementation of a test can begin.

While policies recommending the use of Alere-LAM have been adopted by eleven (11/24, 46%) countries at the time of data collection, the test was routinely used in only four of these countries, plus the DRC (which is using Alere-LAM without a policy) (Figure 1). Despite the severity of the HIV-TB co-epidemic, the generally siloed nature of HIV/AIDS and TB care is also observed in the context of Alere-LAM testing: six countries had adopted Alere-LAM policies in both NTPs and NAPs, but in two and in three countries, only the NAP and NTP, respectively, had an Alere-LAM policy. This distinct separation was further reflected in the reported barriers to Alere-LAM uptake: four countries stated that the Alere-LAM test is not within the scope of the NAP and six responded that it is not within the NTP’s mandate.

For PLHIV who are coinfected with TB, this lack of collaboration manifests in particularly low rates of TB testing, diagnosis, and eventual TB treatment completion²¹. A systemic review and meta-analysis of post-mortem studies found that approximately 40% of deaths in PLHIV were attributable to TB, but half of these TB cases were undiagnosed in the person’s lifetime⁴. By employing Alere-LAM, many of these deaths could have been prevented. In a 2016 systematic review and meta-analysis, the risk of mortality was 2.3 times higher in PLHIV who tested LAM-positive than in PLHIV who tested negative, so this test could be used as a life-saving prognostic tool²². Indeed, it has been shown that urine is more feasible to collect and testing can occur within 24 hours of hospital admission²³, and that routine Alere-LAM testing in hospitalized PLHIV led to a 4% (95%CI: 7–9%) absolute risk reduction in death, as clinicians could identify patients who needed rapid anti-TB treatment initiation²⁴.

Issues surrounding Alere-LAM jurisdiction were not the only barriers to the test’s implementation. In-country test piloting was commonly cited, and while such evaluation is important for understanding logistical and country-specific implementation issues, they can significantly delay the introduction of new tests where they are most needed. Additionally, the belief that only a small volume of people would require Alere-LAM testing, due to the existence of “test and treat” programs and ART scale-up, prevails. Unfortunately, this claim is not substantiated by the data. In a retrospective cohort study of over 8 million CD4+ cell count test results in South Africa, the proportion of people presenting to care with advanced HIV disease was 33%, relatively unchanged since 2011, and those presenting with very advanced disease was 17%²⁵.

Budget limitations were the most commonly cited barrier (10/21, 48%). This is despite the low end-user cost per test cost of Alere-LAM, approximately 3.50 USD via Global Drug Facility^16,26, well below the WHO Target Product Profile optimal cost for a rapid non-sputum-based biomarker test for TB detection²⁷. The lack of budget allocation may be related to the absence of targeted donor programs or concessional pricing negotiations around Alere-LAM’s launch, such as what was observed with Unitaid-funded access grants²⁸ or donor-orchestrated buydowns²⁹ in the case of Xpert MTB/RIF. It may also be a reflection of the WHO’s previously conditional (now strong) recommendations that were limited to a relatively small subgroup of PLHIV. The conditionality of the recommendations was perceived as a lack of confidence in the data, which likely played out at the country-level as a lack of enthusiasm for Alere-LAM, translating into a lack of political will, and thus funds, to improve test implementation and accessibility. Domestic funding for health systems must be grown; in conjunction with strategies that previously led to successful procurement of Xpert MTB/RIF, like those mentioned above, and novel solutions, such as reducing price mark-ups on in-country suppliers or pooling procurements from different regions, this should allow for increased availability of Alere-LAM. Hopefully, the now strong recommendation for Alere-LAM use in an expanded population will result in increased funding and implementation of testing.

Country testing policies for Alere-LAM, when existent, were generally (8/10, 80%) aligned with WHO guidelines, i.e. to assist in the diagnosis of TB in severely ill PLHIV or PLHIV with CD4+ counts ≤100 cells/µl. However, as WHO’s Consolidated ART Guidelines now recommend viral load testing for ART response monitoring instead of CD4+ count³⁰, there might be some uncertainty with regard to whom the test should be offered and whether the test can be used at decentralized facilities without clinical laboratories. The 2019 WHO Essential Diagnostics List includes Alere-LAM, but only at facilities with clinical laboratories³¹. Although the updated LAM Guidelines depends significantly less on CD4+ cell counts than the 2015 recommendations, this ambiguity will need to be clarified by WHO, particularly for countries that are planning to implement Alere-LAM but currently have no policy or testing algorithm in place. It should be noted that the 2019 LAM Guidelines do strongly recommend the use of Alere-LAM in all severely ill PLHIV inpatients with TB symptoms, regardless of CD4+ cell count¹⁴, which is now aligned with the ART Guidelines’ strong recommendation to initiate ART in all PLHIV regardless of clinical stage or CD4+ cell count³⁰.

Qualitative research published alongside the latest WHO Alere-LAM policy reported that among primary care health workers in high HIV/TB burden settings, confidence in Alere-LAM may be rather low, given its overall low sensitivity. As well, Alere-LAM is not a stand-alone diagnostic test, and TB rule-out requires confirmation by other methods, which, besides being difficult to obtain from severely ill PLHIV, may be difficult to explain to patients, lowering its acceptability. Finally, in order to have confidence in a positive Alere-LAM result, existing clinical suspicion on the part of clinicians remains necessary³².

The primary limitation of this study is that although we surveyed the 31 highest TB/HIV burden countries, we did not attain a 100% response rate. However, it was relatively high (24/31, 77%), with most questionnaire responses coming from NTP employees. Lack of adequate responses from NAPs, however, could mean that we under-estimated Alere-LAM uptake. Also, we did not account for Alere-LAM use via PEPFAR, a major funder of ART scale-up in many high HIV prevalent settings.

Despite limitations, our study identified limited uptake of Alere-LAM among high TB/HIV burden countries. The barriers identified in our questionnaire, along with advocacy reports by groups such as TAG and MSF, can help policy makers, country governments, and donors build better strategies for Alere-LAM implementation and scale-up. These questionnaire results should help guide efforts to develop higher-sensitivity urine LAM tests^33–35 and rapidly roll them out, as country adoption of improved products must anticipate challenges from the field.
