Identifying population segments for effective intervention design and targeting using unsupervised machine learning: an end-to-end guide

Assembling key stakeholders and defining overall goals

Technically sound and actionable segmentation depends on the contributions of a multi-disciplinary team, encompassing a set of distinct characteristics: overall decision-makers, program domain experts, research designers with behavioral expertise, data scientists skilled at cluster analysis, and intervention designers. A good solution across all steps involved in segmentation (Figure 1) depends on collaboration and mutual pressure-testing.

Once the team is assembled, it is critical to clarify and align on the ultimate aim of the segmentation project: What is the target behavior for which differences in drivers such as beliefs, structural constraints, or demographics should be understood? Who should be segmented? And what could segmentation ultimately be used for? For example, a public health program may want to reduce the impact of malaria in a region. The primary target behavior might be the use of bed nets, or care-seeking behavior once first symptoms are detected, or medication adherence. Each of these behaviors will have different drivers that serve as input variables for cluster analysis. They will also encompass different key stakeholders, such as existing malaria patients or mothers making purchasing decisions for their households. People might also be segmented for different purposes, for example to be individually targeted by active case finding teams, or alternatively so that governments can offer a portfolio of products that might appeal to different segments. Being clear about who to segment and for what purpose also allows researchers to later narrow down the potential input variables more efficiently, and to create meaningful and actionable segments.

Structuring potential variables as inputs for segmentation

Segmentation requires quantitative data – e.g. numbers, scores, scales, categories – containing a range of variables that are likely to be related to the target behavior, that vary among people, and at least some of which are amenable to change via interventions. The algorithms will rely solely on these variables to group people together. Choosing too many variables will lead to segments poorly differentiated on each individual variable. Segmenting on variables that are not related to a relevant target behavior will not enable programs to design interventions that change outcomes of interest. A common pitfall is that the segmentation algorithm will always find some segmentation, no matter how poorly the segments truly differentiate on the underlying variables or how unactionable the solution is. It is up to the practitioners to make sure the inputs and outputs make sense, and an expert understanding of the problem, people, and context should inform what variables are used as input. Most often, this requires conducting primary research.

Brainstorming an initial list of variables is critical, including demographic characteristics, behaviors, and external and perceptual barriers and enablers related to the target behavior⁴. Erring on the side of listing an exhaustive number of variables can be useful: not all will serve as inputs to the final segmentation, but missing key factors associated with a target behavior will greatly compromise the value of the final output.

Categories of variables: demographic, behavioral, perceptual, contextual. A comprehensive range of variables describing demographic characteristics can be captured, including age, location, income, education level, and other socioeconomic characteristics. Most of these variables will not be used to make up psycho-behavioral segments. Instead, they may later be used to ‘profile’ segments – the process of describing segments based on variables not included in the segmentation itself – and narrow down where interventions should be targeted.

For variables capturing behaviors, it helps to focus on those that are likely related to the target behavior. For example, if patients are to be segmented on their barriers to seeking medical care, data collection may aim to capture their previous interactions with healthcare providers, general self-care behaviors, and information-seeking.

A well-validated framework of behavioral theory can help structure potential contextual and perceptual drivers. The CUBES (to Change behavior, Understand Barriers, Enablers, and Stages of change) behavioral framework, for example, can be used to help programs list the types of drivers that could potentially be involved in any given behavior, evaluate existing evidence on what drivers actually are important, and design primary research around closing evidence gaps⁴. CUBES was synthesized from the strongest evidence-based approaches to systematically investigating behavior^9,11,12. It posits that behavior occurs on a continuum from awareness to intention, action and beyond, and various factors can enable or obstruct movement along that spectrum. These drivers can be contextual – such as infrastructure, regulations, or systems and processes – or perceptual, such as a person’s beliefs, emotions, and biases. Layers of influencers and channels mediate these drivers.

Utilizing existing research to identify knowledge gaps. Using the structure of potential drivers identified above, a structured literature review and/or expert interviews can be conducted to find what is already known about likely barriers and enablers of the target behavior. For example, a study may find that beliefs about the health risks of a procedure are a key barrier to patients electing to undergo it. For purposes of segmentation, it is useful to focus on the barriers and facilitators that do not show widespread agreement in the target population, as these have the potential to create distinct segments. The findings can then be used to update the list of variables for upcoming data collection and make them more specific. For example, while a framework of behavior might provide a pointer to look for risk perception beliefs, secondary research can help refine exactly what risks people worry about.

Based on the literature review and/or expert interviews, a list of ‘evidence blind spots’ can then be compiled: which behaviors or drivers of behaviors are well understood, and which ones are not? For example, is there plenty of evidence on socioeconomic factors and infrastructure driving the target behavior, but nothing on social norms? If there is enough information to design structured quantitative research, qualitative research (see below) may be skipped.

At this stage, programs may find it helpful to form initial hypotheses on how potential drivers could group together, and sketch out tentative segments, or archetypes, bringing presumed essential differences to life. Archetypes can provide a clear vision of what needs to be pressure-tested qualitatively and/or quantitatively, and can be refined again after qualitative research. However, it is also important to remain open-minded that the segments resulting from the data may differ from the hypothesized groupings.

Exploratory qualitative research

When relatively little is known about a target behavior, qualitative primary research is an excellent way for programs to deepen their knowledge in an exploratory way and ultimately improve their chances of a successful segmentation. For segmentation, the goal of qualitative research is to help structure and refine quantitative research items. This step can therefore be skipped if there is extensive existing knowledge of the likely drivers of a target behavior. If programs decide to design and conduct qualitative research, they can select a mix of qualitative methods to investigate the identified blind spots in the target population in depth, balancing their relative strength and weaknesses. Examples include in-depth interviews, ‘journey mapping’, which tracks behaviors and attitudes over time, decision-making exercises, and observations^3,4. Quantitative surveys are not suitable at this stage, as the aim is to allow for open responses and unexpected insights. Focus groups, which may obscure individual differences as individual respondents interact with each other, may also be less useful to investigate heterogeneity.

To implement qualitative research, programs can hire a reputable research agency for field implementation of the qualitative methods and supervise training of research staff. A small sample, perhaps 20–30 respondents, is often sufficient, as the goal at this stage is depth of insight to refine further research, not representativeness. For analysis of qualitative research, programs can take advantage of standard qualitative approaches such as thematic analysis, so that patterns (‘themes’) in the data can be identified¹³. Themes can correspond to the list of input variables defined previously, in which case responses can provide insight into how questions should be phrased for quantitative research, or what answer options should be provided. The qualitative research can also yield new themes and input variables.

Quantitative data collection

Segmentation requires quantitative data – often from questionnaires – to identify subgroups. Some programs will already have collected or obtained a data set that they want to perform segmentation on. If these data meet the requirements for quantitative segmentation analysis (see below), such as containing relevant variables for segmentation, a large enough sample size, relevant profiling variables, and response scales that allow for sufficient variability, a program might jump to quantitative analysis and not collect any new data at all. For those that do not yet have data or consider their existing data unsuitable for segmentation based on these parameters, this section explains how to optimize quantitative data collection for the purpose of segmentation.

Defining the scope and sampling approach. Defining the scope and size of quantitative research requires balancing the desire for nuanced information with available resources. As with any quantitative research, larger samples can generate a more reliable picture of the population. In addition, the larger the sample, the greater the number of variables that can be included to segment on, and the more nuanced the segments that can be identified. One modeling approach suggests that 100 observations per variable is a good rule of thumb¹⁴, though generally the need for observations grows exponentially with number of input variables. Therefore, a robust quantitative segmentation design will usually include at least several hundred and perhaps over a thousand respondents. On the other hand, if programs already know they are limited to interventions that act on only a small set of drivers (and, in turn, few variables are needed to segment on), and resources for data collection are scarce, more focused segmentation can be done on a smaller scale.

For the sample design, researchers can factor in success and failure rates of the target behavior: for example, to understand barriers to using bed nets for malaria, sampling units should not primarily consist of populations with a very high saturation of bed net use.

Questionnaire design

Reference can be made to strong themes emerging from qualitative research outputs to decide what questions to ask and how, following best practice to capture behavioral drivers. For example, if people are to be asked about their risk perceptions and self-efficacy in relation to disease prevention, existing published question items can be adapted¹⁵. Table 1 shows an example of how different drivers used for segmentation and profiling were converted to survey items for a recently-published segmentation study on the drivers of voluntary male medical circumcision in Zambia and Zimbabwe, discussed in the Results section³.

The analysis of likely drivers of the target behavior might suggest that only a few variables are sufficient to explain differences in the target behavior in the population. In this case, questionnaires to collect segmentation data can be as short as a few minutes, only asking the critical questions. At the other end of the spectrum, large uncertainty about which drivers are most relevant will require collecting a larger set of variables for exploratory analysis. In any case, primary research should always adhere to best-practice design guidelines, such as avoiding over-long questionnaires to preclude survey fatigue.

Even at the design stage, it pays to plan the variable scales needed for various segmentation algorithms. To use the most straightforward segmentation algorithms, variables used as segmentation inputs are best captured as continuous or approximating-continuous scale (such as Likert scales). Continuous variables can still be transformed into categorical data if necessary, and segmentation algorithms exist to account for a mix of continuous and categorical data (see below). Other variables, such as those used for profiling (describing) segments, can use any scale.

If resources allow, data which may be useful later to profile segments can also be captured. There is no fixed rule on which variables are used as segmentation inputs and which for profiling, but it is advisable to segment on drivers that do not fluctuate frequently and are useful in defining targeted interventions. In contrast, profiling variables provide context and can enrich the program’s understanding of the segments, making it easier to define strategies for identifying and targeting them. For example, a variable of ‘favorite TV shows’ is not a suitable input to segmentation, as it may frequently change and segments would therefore not remain stable over time; but segments can be profiled on which TV shows they currently prefer to enrich the narrative. One advantage of relegating some variables to profiling is that it limits the number of dimensions of segmentation, and therefore helps to sharpen differences along the most relevant dimensions.

Before deploying a questionnaire at scale, it is useful to conduct a ‘cognitive pre-test’ of the research instruments in the field. Respondents can be de-briefed to gauge how a question is interpreted and whether the question and its scale yield useful responses. A question that is misunderstood, or results in little variation among answers, can then be revised or removed.

For data collection, programs can again hire a research agency. Research agencies specializing in quantitative data collection may not be the same as those focusing on qualitative research. When data collection is outsourced, it may be advisable to supervise training of research staff on the study purpose, understanding and delivery of questions, probing, and response coding. While training protocols vary, effective staff training should be both classroom-based, including role-playing exercises, and supervised in the field.

Quantitative segmentation analysis

Even in a lean data set, analysts are commonly faced with more variables than it is wise to include in a segmentation, and the variables might be in a format not conducive to the algorithms that can be chosen. The optimal segmentation solution will not be known beforehand, and iteration is critical. Analysts and the entire team can include different sets of variables, transform the variables in different ways from continuous to categorical, create composite variables, try different algorithms with different parameters, and critically evaluate solutions to assess whether a particular analysis is worthwhile. The considerations below should therefore be considered as part of an iterative process, rather than a series of steps traversed only once.

Determining the variables entering segmentation. Initial descriptive data exploration is key, and it is often very revealing to simply look at the distribution of each variable to identify those that vary most strongly between people. Variables with low variability may be important predictors of behavior, and so may be targets of an intervention in their own right, but are rarely useful for segmentation. Merely examining histograms for each of the variables often provides ample insight into the population and hones an intuition for the data which are critical for the subsequent multiple iterations of analysis. Similarly, correlations and scatterplots between variables can be examined to understand basic patterns of co-variation.

A questionnaire will almost always include several items testing for the same underlying driver. Entering each of these questions in the segmentation will overweight the importance of that driver in the construction of the segments. The solution is to perform dimensionality reduction, which simply means bringing down the number of variables used as input to the algorithm. Most commonly this happens by combining several answers into a single composite score. For example, several questions testing for knowledge about what a medical commodity is and where it is available can form a composite testing for ‘awareness’. Another option is to hand-pick one of a group of questions that is deemed most relevant and representative of the driver, removing the other variables. Lastly, statistical methods to perform dimensionality reduction such as canonical correlation, principal component analysis, or factor analysis can be used. These can also inform researchers which variables are most representative of the underlying constructs, a helpful indicator in selecting variables.

Pre-processing: scaling and transforming variables. As unsupervised cluster analysis based on measures of dissimilarity between individuals that have vastly different value ranges (e.g. one variable expressed in years and one in days) can overstate the importance of some variables simply because of their scale. Scaling variables, for example as standard deviations from the mean, is often a necessary step. However, if there are categorical, ordinal, or binary variables, scaling can be skipped and alternative ways of calculating distances, such as Gower distance, can be used (see below). Though it is advisable to collect continuous responses where possible (because they tend to be richer in information than categorical responses), there will be cases where most variables in the data were collected as categorical. Excellent segmentation algorithms exist that only take categorical variables (such as latent component analysis), but this will require the remaining continuous variables to be converted to categorical variables by cutting the distribution at sensible points. What makes for a ‘sensible’ cut depends on expert knowledge, the distribution of data, and trial and error to see what yields the most useful segments.

Exploring competing segmentation algorithms. The development of segmentation algorithms has been an active area of research for at least half a century¹⁶. There is no universal best algorithm, but rather the optimal algorithm must be discovered through an understanding of the data, strengths and weaknesses of the algorithms themselves, and evaluation of the algorithm’s output against project goals. Fortunately, only a few algorithms need to be understood to satisfactorily solve the vast majority of use cases. We provide a brief overview of several of these methods (Table 2) and describe in more detail two common unsupervised algorithm families: hierarchical clustering and k-means clustering.

One consideration of algorithm choice is not analytic, but based on program constraints. For example, are implementers constrained to develop interventions for a limited number of segments? Should target segments represent at least a certain percentage of the market? Does the program care most about the size of a segment, or how much segment members are at risk of contracting or spreading a certain disease? Depending on these discussions (also the considerations on segment prioritization below), algorithm parameters – most notably the number of clusters requested from the algorithm – can be adjusted to satisfy these constraints.

A priori, it is not obvious which algorithm will yield the best solution of finding segments that are clearly distinct and pass the ‘sanity check’ of splitting the data in a way that makes real-world sense. Therefore, we recommend that researchers perform a set of iterative analyses with competing algorithms and compare them against the goals and constraints of the project. Overall, human judgment is crucial throughout analysis. Investing in good ways of communicating, visualizing, and comparing the different solutions with non-technical colleagues pays dividends when it is time to apply the segmentation solution. No part of the analysis should be isolated from the people making decisions on how segments will be used, and those with in-depth knowledge of the population.

The two clustering algorithms we focus on here - hierarchical clustering and k-means – are based on ‘distances’ between people, grouping people that are close together in a space created by the input variables. However, often data sets include categorical variables (such as male/female or urban/rural) that do not naturally create a space to calculate distances in. This requires the use of alternative algorithms. In other cases, the clusters have unusual shapes that are poorly handled by some algorithms but not others. To deal with these challenges and others, many types of cluster algorithms and distance metrics exist, a sample of which is described in Table 2. It is important to note that only rarely do real-world data conform to idealized examples, and only visualization and iteration will reveal the best way of generating segments (illustrated in Figure 2, code available as extended data¹⁷).

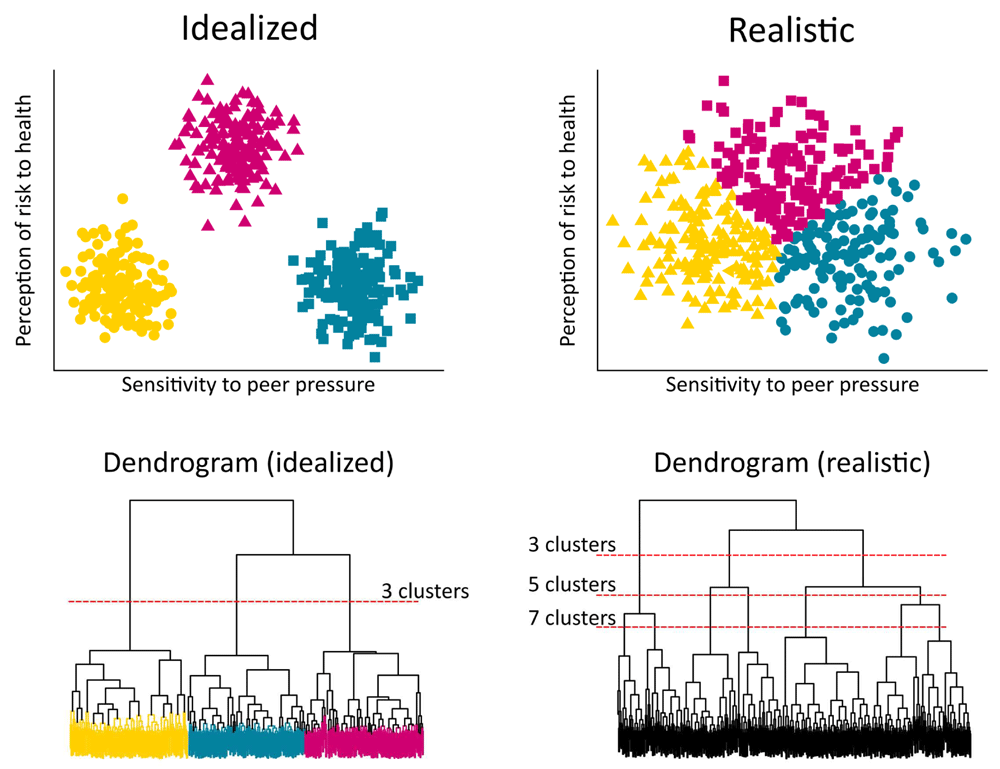

Figure 2. Idealized and realistic outputs of k-means (upper panel) and hierarchical (lower panel) cluster analysis.

The reality of psycho-behavioral segmentation is that there are rarely perfectly-defined clusters. We illustrate this with simulated data showing a segmentation with two input variables in the context of getting a test for sexually-transmitted diseases (STDs): sensitivity to peer pressure to get the test, and perception of risk to health of STDs. In the idealized case (left side), there are clearly three clusters detected by the k-means algorithm, perfectly separated from one another. The dendrogram of these data in the bottom left also shows a clear point at which the tree can be 'cut' to define the clusters (as done in hierarchical clustering). In the real world (right side), however, variables are often normally distributed and noisy. K-means will still identify three segments because that number of segments was specified in advance, but clearly there is little actual ‘clustering’ of people. Similarly, the dendrogram of these data suggests potential cut-off points at several heights that seem equally reasonable. This is not to say clusters could not be useful in this case, as there are differences in sensitivity to peer pressure and risk perception between the segments. However, it could be reflected in tailored interventions that the individuals near the middle of the cloud are not all that different from one another. The code to generate these graphics is available at https://github.com/SurgoFoundation/segmentation.

Hierarchical clustering. Hierarchical clustering starts by treating all data points as a single cluster and gradually splitting them up (‘divisive’), or treating each data point as its own cluster and gradually merging them (‘agglomerative’). This is often represented via ‘dendrograms’ showing the merging hierarchy visually (Figure 2, lower panel). Even if it may not turn out to be a suitable end solution for a particular data set, we recommend using hierarchical clustering for initial visual exploration of the data. A key advantage of hierarchical clustering is that it can be used with continuous, categorical, or even ordinal and mixed data, depending on the distance measure used. Another advantage of this method is that it does not pre-define the number of clusters that a solution will be split into. It also shows a hierarchy of groupings, rather than a single grouping as k-means and similar algorithms do, making it well-suited to initial exploration of data. A disadvantage is that once merged into a segment, data points will remain allocated to that segment throughout the hierarchy, so once-constructed segments are not improved iteratively.

To carry out hierarchical clustering, analysts must first determine a distance measure between data points. Clusters are split or merged depending on whether data points are close to each other or far apart in a space determined by the input variables. Therefore, the distance measure chosen is important and determines the shape of the clusters. Euclidean distance, essentially a straight line between data points, is often a default for continuous variables provided in many analytical packages. For categorical or mixed data, other distance measures such as Gower distance, which relies on a mixture of distance measures as appropriate for each variable type, should be selected. Another metric of similarity only used for continuous data is the correlation between answers of any two individuals: a high correlation suggests the pattern of responses is similar (even if absolute values of responses might not be). Next, a measure of distance between clusters needs to be defined. Should clusters be merged based on the maximum (‘complete linkage’), minimum (‘single linkage’), or another (e.g. ‘average’) measure of distance between elements of each cluster? Complete linkage is often the default, such as in the ‘hclust’ function in the R programming language, and different linkage methods change the resulting splits in the dendrogram. Analysts can plot the dendrograms and assess whether the resulting splits make sense.

K-means clustering. The most commonly used segmentation algorithm is k-means clustering. It works only if data are continuous (or approximating continuity). It also requires that the number of clusters is set in advance. One key advantage of k-means is that it is relatively fast and straightforward, as fewer decisions must be made by the analyst. Another is the iterative improvement of clustering solutions: the algorithm first picks central points (‘centroids’) for the given number of clusters at random, allocates data points to their nearest centroid, and then averages across data points to compute new centroids. This process is repeated until a stopping criterion is reached, such as a set number of iterations. In practice, 20–50 iterations have been shown to be sufficient²⁶. Disadvantages of k-means clustering are that the number of clusters must be set beforehand; that, unlike in hierarchical clustering, clusters are designed to consist of a center with a sphere around it and so may not detect groups of different shapes²⁷ or of different sizes of spheres; and that it is not appropriate for categorical data (but modified versions of k-means are, see below).

Other algorithm types and modifications. Depending on the types of variables and success of previous steps, other algorithms can be explored (Table 2). Most commonly, practitioners will run into the issue of dealing with categorical data not amenable to k-means. This can be overcome by using a distance metric that allows for categorical variables (e.g. Gower distance) and feeding the distances into hierarchical clustering or partitioning around medoids (PAM). Alternatively, some algorithms, such as modified k-means algorithms for categorical data²⁸ or two-step clustering²⁹, can be used to deal with categorical data. Other approaches are conceptually more removed from the techniques introduced here, such as latent class analysis, in which a model of hidden classes is built and data points are assigned a likelihood of belonging to a class¹⁰. This technique is particularly useful if the data consists only of categorical variables.

Evaluating solutions. Evaluating competing solutions and determining the best number of clusters is once again a team effort. There is no unambiguously optimal number of segments, but in general a result is useful if segments are:

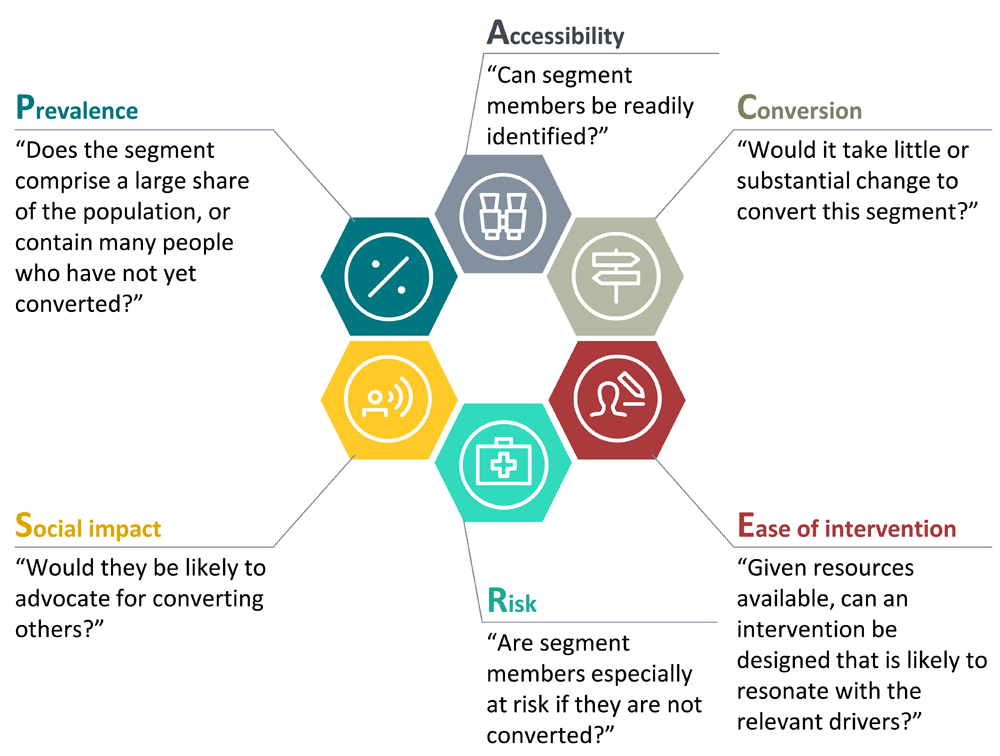

Figure 3. The PACERS framework for segment prioritization.

The best solution will be the one that yields the most useful segments, and the merits of multiple solutions need to be understood before deciding on the optimal cluster number. This will involve generating multiple solutions and discussing with stakeholders the advantages and disadvantages of each. Apart from practical considerations, such as the number of targeted interventions or products that can reasonably be designed, various methods help decide on the number of clusters to use. No method completely avoids subjectivity, but the following steps combine a mix of methods to evaluate cluster solution outputs.

First, cluster identity can be plotted onto scatterplots of the data for different solutions to visually determine if obvious patterns are missed, or conversely whether patterns are forced onto the data even though it looks homogeneous (as is the case in Figure 2, right panel). In addition, analysts can deploy a mix of visual and statistical tools to evaluate separations. One example is the visual ‘Elbow’ method, where the overall within-cluster sum of squares is plotted for an increasing number of clusters. A ‘bend’ or ‘Elbow’ within the plot and a subsequent plateau indicate that adding further clusters will not explain much more of the variance. An alternative is the similar ‘silhouette’ method, looking at how well each data point fits into its cluster. Statistical indicators such as the Pseudo-F, Pseudo-T, or the ‘gap statistic’ can add insight. The Pseudo-F statistic gives the ratio of between-cluster variance to the variance within clusters. When the index is plotted against the number of clusters, large values indicate dense and distinct clusters. The Pseudo-T statistic is a measure of the difference between clusters merged together. Jumps in the index plotted against the number of clusters therefore point to an optimal number of clusters. The gap statistic tests within-cluster variance for a number of clusters and compares it to the null hypothesis of a random uniform distribution. In a plot of the output for different numbers of clusters, the optimum number of clusters maximizes the gap statistic. If the gap statistic suggests an unwieldy number of clusters, the number of clusters after which the slope of the increase starts to plateau is commonly selected³⁰.

A lack of ‘elbow’, or little variation in the statistical measures for different cluster solutions, may indicate that the algorithm used is unsuccessful at finding clusters, or that there are no clear clusters in the data. This does not mean there are no useful subgroups to be found, but the borders between the subgroups will be blurred (compare Figure 2, left panel versus right panel). In any case, analysts can back-check the solution by selecting a few segment members at random and looking at their input data: overall, do their responses justify segment membership? If not, another solution can be tried. Iteration is helpful in any case, and so the steps above can be repeated with different algorithms, including using methods in sequence. As in Sgaier et al.³, hierarchical clustering can for example first be used to visually explore which number of segments makes the most sense for the data, followed by k-means clustering to refine the segments beyond the rigidity of the hierarchical approach. Less commonly, this order can also be reversed²⁷.

Another useful indicator to evaluate a cluster solution is to check whether available outcome measures that were not used to generate the clusters, but should correlate with behaviors of interest, are associated with clusters in expected ways. For example, in a cluster solution that looks at different health lifestyles, membership of a ‘health-oriented’ cluster should predict high, not low, rates of seatbelt use. Demographic variables can act as a further sanity check: if seatbelt use rises with age, that variable should also follow a similar distribution in the health lifestyle clusters (i.e., more older people would be expected in more health-oriented clusters). As another example, interventions campaigns focusing on alcohol abuse in the US might use smoking as an outcome measure correlated with heavy drinking^31,32.

After settling on a solution, segments can then be characterized by tabulating or graphing the variables they differ on. In addition, they can be described narratively. Naming the segments with descriptive segment names so that their key differences are readily apparent is important and brings them to life.

Prioritizing and targeting

PACERS: a prioritization framework. In any program, resources rarely allow for targeting all segments with equal effort at the same time. An equal focus may also not be the desired approach in all cases. Programs can prioritize by considering a mixture of factors, summarized in the PACERS framework for segment prioritization (Figure 3):

Targeted intervention development to address segment-specific barriers. Segmentation is useful to develop interventions to specifically target and fit each priority segment’s key drivers and barriers. Interventions can take many forms, including mass communication campaigns, financial incentives, face-to-face support, and improving infrastructure conditions. For example, if some women do not use certain temporary contraception because of a fear of becoming permanently infertile, program designers can emphasize a corresponding message to them, or suggest an alternative product that fits their needs better. For another segment, the key barrier might be a social norm of demonstrating fertility by having many children, in which case more sustained work to change social norms is necessary.

Segment members can be targeted individually, or by counting on them to self-select into macro-level interventions, such as communication campaigns addressing several drivers at once. In either case, messages and intervention aides should be pilot-tested before scaling up their use.

One way of identifying segment membership for targeting individuals is to use a segment typing tool (Figure 4). Such a tool takes only a few points of data and outputs the predicted segment of the individual. If the typing tool is deployed with pen-and-paper in the field, decision trees are a good option³. Decision tree-based typing tools identify the most predictive questions to determine segment identity, constructing a series of questions to be asked in the field. If a computer is available when administering the typing tool, more computationally demanding typing tools, such as a discriminant analysis, can be used. Expected accuracy in the field can be determined by building the typing tool on a subset of the data (training set) and applying it to the remainder (test set). Often the typing tool may have trouble distinguishing between two segments, or perform poorly on one particular segment. A common decision point will be how much accuracy to sacrifice in the interest of keeping the typing tool short, and which segments are most critical to type accurately.

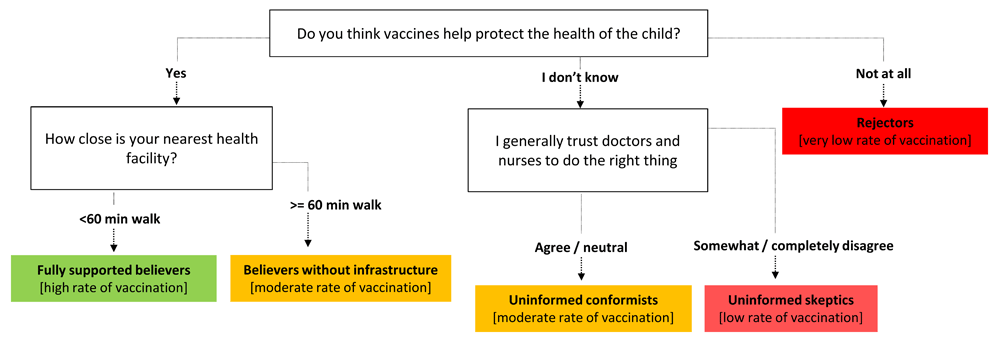

Figure 4. Representative schematic of a segment typing tool.

For individual targeting, field workers or other stakeholders can use typing tools that quickly identify which segment an individual most likely belongs to. Splits in a decision tree-based typing tool can be based on categorical or continuous variables alike, and are chosen by the algorithm to identify members of each segment as accurately as possible. By giving responses to each question, a person is then allocated to a segment at the end of their path. Here, we show a hypothetical example of what a typing tool could look like to allocate a parent into existing segments relating to child vaccination behaviors. A parent in a given segment might be more or less likely to vaccinate their child, for different reasons. The field worker can then select an intervention or message that is most likely to resonate with that specific segment. For practicality, typing tools often stick to the three or four most predictive questions. However, that practicality has a tradeoff with typing accuracy: the more accurate a typing tool needs to be, the more questions must be asked.

Monitoring and evaluating the segment-based approach. Monitoring the segments over time helps identify which are growing, shrinking, or otherwise changing in relevance. For example, one segment might consist of pregnant women who live more than 5 km from a hospital. If one year later a government initiative builds many new facilities, this segment will shrink and become less relevant to invest in. Likewise, an excellent transportation system to facilities might be introduced, meaning the segment does not change in size (the distance to facilities is still the same), but it does not require further intervention as the underlying problem of access is solved. The size and relevance of each segment can be tracked with simple surveys or, in some cases, third-party data.

Impact evaluation of the segmentation approach can be done at several levels. First, key program performance indicators can be monitored to ensure that the segment-based approach is not compromising overall delivery of the program. Second, conversion or success rates of the program can be compared before and after introduction of the segment-based approach. One option is that the segment-based approach is rolled out in different places at different times using a “stepped wedge” approach. This is a pragmatic and efficient study design that allows for an estimation of the causal impact of the newly introduced method³³. Lastly, an impact evaluation can be performed for certain types of interventions, whereby the target individual gets typed and is then randomly given either an intervention that matches with their type, or a generic control intervention. Such a ‘generic’ intervention could be the one-size-fits-all intervention provided prior to introducing the segment-based approach, or a mismatched intervention. If the segment-matched individuals perform better on the target behavior than the control individuals, this provides causal evidence for the impact of the segment-based approach⁹.

Source data

A full description of the case study results is presented in Sgaier SK et al.³.

The data underlying this case report (anonymized survey responses) is owned by the governments of Zimbabwe and Zambia, and the authors have requested the respective governments to make the data publicly available. This request is currently subject to government approval. Until the data are publicly available, the data are made available upon reasonable request (criteria for access may apply subject to assessment by the respective governments). Requests for access to the data can be made to the following:

Zimbabwe

Ministry of Health and Child Care

Box CY1122, Causeway, Harare, Zimbabwe

Tel: +263 4 798555/60

Email: pr@mohcc.gov.zw

Zambia

Ministry of Community Development and Social Services, formerly Ministry of Community Development, Mother and Child Health

Community House, Sadzu Road, Lusaka, Zambia

Tel: +260 96 5792010

Email: info@mcdsw.gov.zm

Underlying data

All data underlying the results are available as part of the article and no additional source data are required.

Extended data

The code to generate the plots in Figure 2 as well as additional visualizations is available from the Surgo Foundation’s Github account: https://github.com/SurgoFoundation/segmentation

Zenodo: SurgoFoundation/segmentation: Segmentation code to support publication of Gates Open Research. http://doi.org/10.5281/zenodo.3249095¹⁷

License: MIT

R version: 3.6.0 beta (2019-04-11 r76379)

Packages:

ggplot2 (3.1.1)

mclust (5.4.3)

tibble (2.1.1)

dplyr (0.8.0.1)
