Software Tool Article
Fpemlocal: Estimating family planning indicators in R for a single population of interest
[version 1; peer review: 2 approved]
PUBLISHED 24 Feb 2021
Abstract
Corresponding author:
Leontine Alkema
Competing interests:
No competing interests were disclosed.
Grant information:
This work was supported by the Bill and Melinda Gates Foundation [INV-008441]
The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.
Copyright:
© 2021 Guranich G et al.
This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
How to cite: Guranich G, Cahill N and Alkema L. Fpemlocal: Estimating family planning indicators in R for a single population of interest [version 1; peer review: 2 approved]. Gates Open Res 2021, 5:24 (https://doi.org/10.12688/gatesopenres.13211.1)
First published: 24 Feb 2021, 5:24 (https://doi.org/10.12688/gatesopenres.13211.1)
Latest published: 24 Feb 2021, 5:24 (https://doi.org/10.12688/gatesopenres.13211.1)
The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.
Introduction
The global Family Planning Estimation model (FPEM) combines a Bayesian hierarchical model with country-specific time trends to yield estimates of contraceptive prevalence and unmet need for family planning. It was first designed to produce estimates for women aged 15–49 who are married or in a union, referred to here as in-union women, for 195 countries worldwide (Alkema et al., 2013; Cahill et al., 2018). Subsequently, it has been used for producing estimates for women who are not in a union, referred to here as not_in_union women (Kantorová et al., 2020). The model accounts for differences by data source, sample population, and contraceptive methods included in the contraceptive use measure. The Bayesian hierarchical structure in the model is used to exchange information across countries regarding uptake of contraceptive methods, the relative share of modern versus traditional methods, and unmet need.
The local implementation of FPEM is a scaled-down version of the global FPEM, where the family planning (FP) model is fitted at a more local (or population-specific) level. Here we use the term local to refer to either in_union or not_in_union women in a single country or smaller area, referred to here as subdivisions. The distinction between the local FPEM and the global FPEM is that the local version can be run on data from a single population and in the model specification all non-population-specific parameters are fixed at outcomes obtained in the most up to date global FPEM run. The development of this model was originally motivated by the demand for computational efficiency, without loss of model accuracy, when estimates and projections from FPEM were needed only for a single country. Specifically, this local-run option was needed to facilitate the use of FPEM at country-support workshops run by the Track20 project (Track20, n.d.). These workshops provided technical support to the pledging countries of the Family Planning 2020 initiative for monitoring progress in FP and the global FPEM was too computationally intensive to be useful.
To illustrate how the local FPEM links to the global FPEM we have provided a flowchart in Figure 1 depicting (1) the hierarchical structure in the global FPEM and (2) the dependencies of the country and subnational local FPEM model specifications on the global FPEM output. In summary, in the country-specific implementation of the local FPEM non-country-specific parameters, e.g. the subregional pace of the uptake of contraceptive methods, across-country variances and the error variances and covariances for different data source types, were not estimated but were fixed at the point estimates obtained from a recent global model run. Similarly, FPEM can be fit to data from subdivisions, i.e. subnational populations. In the subnational implementation of the local FPEM, each subnation is considered as a “country” within the “subregion” of its respective nation. For instance, in India, States/UTs were considered as “countries” within the “subregion” of India. By fixing the subregional parameters at parameter point estimates obtained from the global run, this implementation of the local FPEM was used to obtain estimates of FP indicators for Indian states/UTs (New et al., 2017).

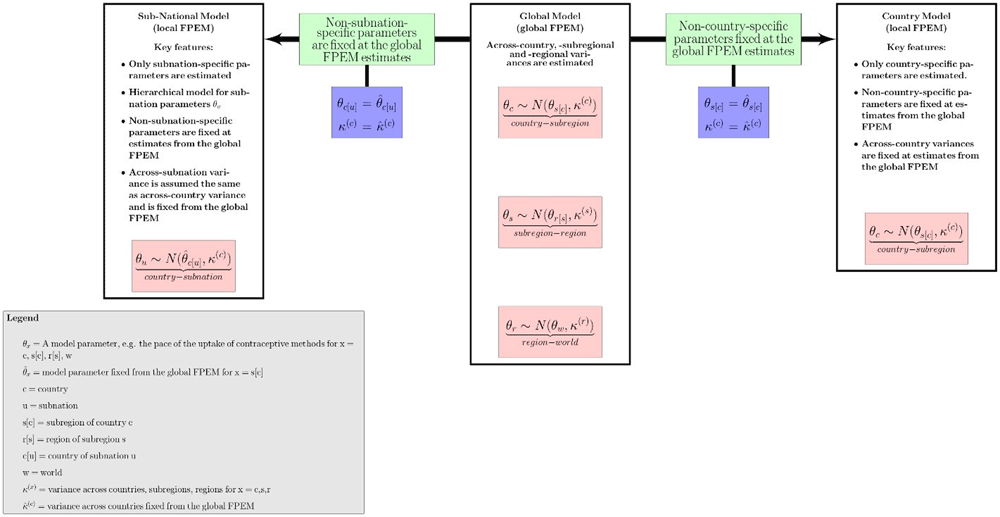

Figure 1. A flowchart to illustrate the relation between global and local FPEM.
Figure taken from New et al. (2017), distributed with a CC BY license.
This paper introduces the R package fpemlocal. fpemlocal contains R functions and input data to do model fitting using the local implementation of FPEM. The package contains data from UNPD on contraceptive use and population numbers (United Nations, Department of Economic and Social Affairs, Population Division, 2020a; United Nations, Department of Economic and Social Affairs, Population Division, 2020b). In addition, the package contains data from Track20 on contraceptive use. In this paper, we present different use cases for how to fit a model to data (UNPD or user-provided) to obtain estimates of contraceptive prevalence and users of contraceptive methods, among in_union or not_in_union women, for a country or subnational area. We also present how to obtain estimates that are aggregated across in_union and not_in_union women, and across geographical regions.
Methods
Implementation
fpemlocal is an R package that contains R functions to carry out the pre- and postprocessing, and fit FPEM to data for a population of choice. Model fitting here refers to using Markov Chain Monte Carlo (MCMC) sampling to obtain samples from the posterior distributions of all model parameters.
Operation
fpemlocal is a publicly available R package stored on Github. For usage, an R (R Core Team, 2020) installation (≥3.4.0) and a JAGS (Plummer, 2017) installation (≥4.0.0) are required. R can be downloaded on CRAN. JAGS is a program for the analysis of Bayesian models using MCMC. JAGS is written in C++ and is portable to all major operating systems. JAGS is available for download at https://sourceforge.net/projects/mcmc-jags/. Note that users will not interact with JAGS directly. Instead, fpemlocal will interface with JAGS through the dependency R2jags. (Plummer, 2017; Su & Yajima, 2020)
fpemlocal can be installed with one of two methods: (1) direct install from Github repository using the install_github() API from the devtools package (Wickham et al., 2020); (2) install from the package binary using the base R function install.package(). Package dependencies are listed in the package DESCRIPTION file and will be automatically installed upon installing the main package. There are no minimum RAM, CPU, or HARDDRIVE requirements apart from what is necessary to store model runs, which varies case-by-case.
Use cases
Input data
The main functionality of fpemlocal is the fitting of the Bayesian FP estimation model to data for a population of interest. We describe its usage in the use cases in this section. Central to all examples are inputs in the form of a contraceptive use survey dataset (referred to as survey data), and a population count dataset (referred to as population data), for the population of interest. fpemlocal contains survey data and population data provided by the UNPD (United Nations, Department of Economic and Social Affairs, Population Division, 2020a, United Nations, Department of Economic and Social Affairs, Population Division, 2020b). Help files provide the metadata related to these data sets, e.g. ?contraceptive_use will display the helpfile for the contraceptive use survey dataset metadata, see ‘package data’ vignette for details. In summary, the contraceptive use survey dataset includes family planning data by, location, age, and marital status. Data are in the form of aggregated survey responses, i.e., prevalence, their transformations, and sampling errors where available. The function impute_user_se is used for imputing missing sampling errors in custom survey data prior to model fitting, based on the approach outlined in Cahill et al. (2018) (appendix p. 16). The population count dataset includes population counts by year, location, age, and marital status. Fpemlocal supports the use of external datasets in place of the default package datasets as long as the format follows that of the default data sets (see use case 1.2).
Additional data provided with the package is used for model fitting and consists of (1) parameter estimates to use in local FPEM, and (2) information on how countries are organized in hierarchical groupings. Parameter estimates are obtained from the most recent UNPD global FPEM runs, currently those of the 2020 revision (United Nations, Department of Economic and Social Affairs, Population Division, 2020b). Information on hierarchical groupings (geographical or otherwise) is provided in the dataset divisions.
Model fitting
The primary function of fpemlocal, fit_fp_c, fits the family planning model for a geographical population of interest, for in_union women and/or not_in_union women. Its arguments are summarized in Table 1. The first and primary argument to fit_fp_c, is a contraceptive use survey dataset. If the user does not supply a survey dataset, the package survey dataset is used. Subsequent arguments division_numeric_code and is_in_union are used to filter input data to obtain the inputs and parameter values that are relevant to the population of interest. In particular, the division code and union status will determine the groupings applied when fitting the local FPEM, and the selected survey observations. Argument is_in_union determines if results are to be obtained for in_union, not_in_union or all women. If results are to be obtained for all women, model fits for in_union and not_in_union women are obtained.
Table 1. Argument descriptions for function fit_fp_c.
Model output
After calling fit_fp_c, the resulting fit object contains posterior samples of all relevant model parameters and essential fit data called core data. Core data is a list containing processed survey data, bias-adjusted survey data, other fit_fp_c inputs, and information about the model fit.
Model output is supplied to calc_fp_c where quantiles of posterior samples are calculated to produce credible intervals. The estimates from calc_fp_c in conjunction with the fit object returned from fit_fp_c can be supplied to plot_fp_c to generate plots of estimates over time overlapping input data.
Case 1: Estimating FP indicators for in_union or not_in_union women
Case 1.1: (default case) FP estimation with UNPD package datasets. The use case of estimating FP indicators for a country of interest using default UNPD data is given in the ‘in union women’ vignette. This vignette takes less than one minute to run on a machine with an 8 core 3.60GHz CPU and 16GB of RAM. In this use case, the user starts by finding the country code (division numeric code) for the country of interest. Then, the user calls the function fit_fp_c to fit the local FPEM model. The user supplies the country code, the union status, and the years of estimates to be returned (see Figure 2). The user does not supply survey data. By default, the function loads package survey data. The function fit_fp_c returns posterior samples and core data. After the model is fit, the user calls the function calc_fp_c to calculate family planning indicators. The calculation of some indicators requires population counts. By default, the function calc_fp_c loads package population count data if it is not supplied by the user. Lastly, the user supplies the fit object, the results object, and a vector of indicator names to the function plot_fp_c to plot indicator estimates and survey data (see Figure 2).

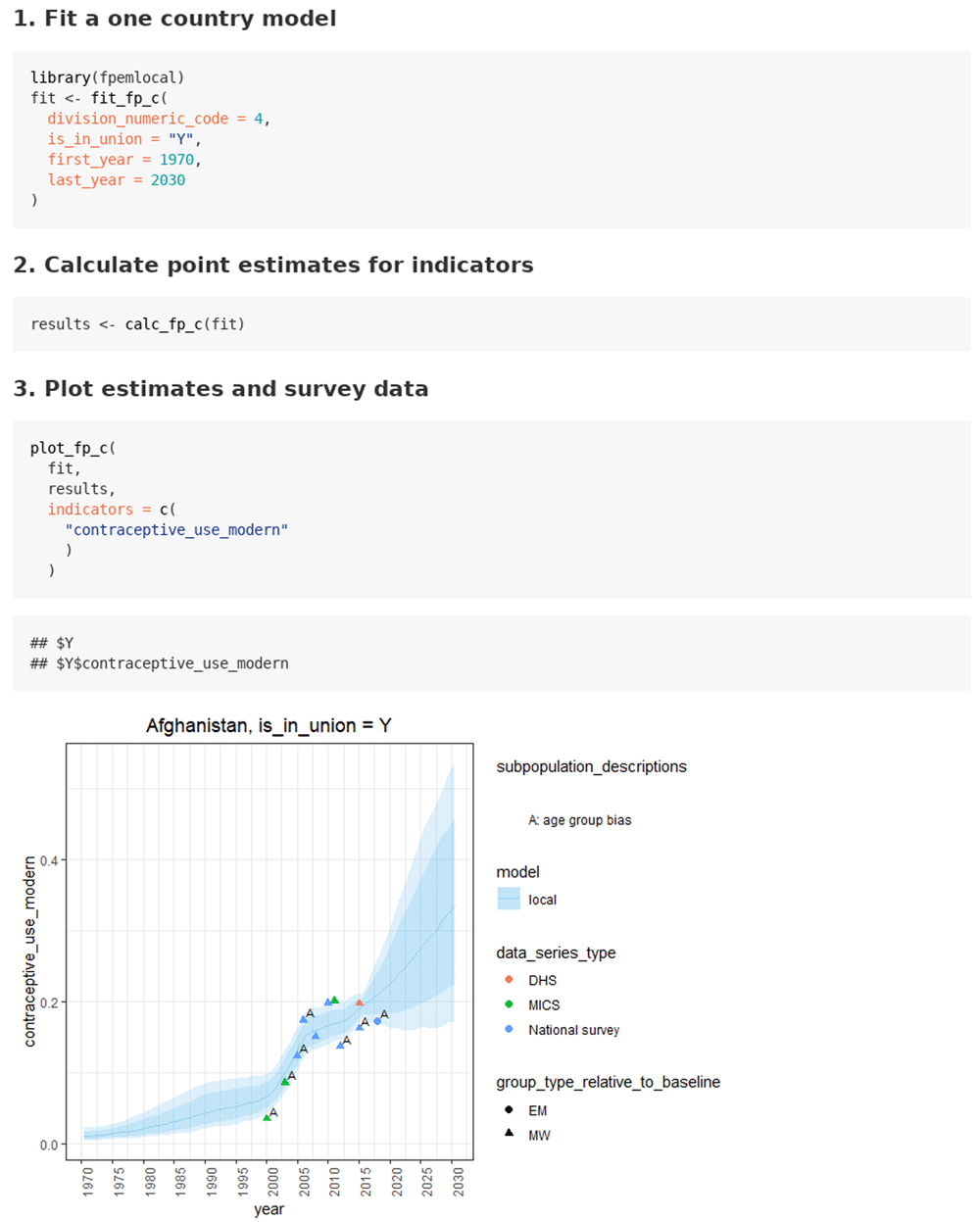

Figure 2. Function calls for use case 1.1, estimating family planning indicators for in_union or not_in_union women for Afghanistan (country numeric code 4) with an illustration of a plot for modern contraceptive prevalence estimates over time from the function plot_fp_c.
Results are shown for Afghanistan. Light purple shaded area represents 95% credible intervals and the dark purple area represents 80% credible intervals.
Case 1.2: Estimating FP indicators using custom datasets. The use case for FP estimating using custom datasets is given in the ‘in union women from custom data’ vignette. Similar to case 1.1, the user starts by fitting the model with the function fit_fp_c. In addition to the inputs in case 1.1, the user supplies the file path of the .csv file containing the survey dataset. Any missing sampling errors in the input data are imputed automatically with the function input_user_se.
After the model is fit, the user reads in the .csv file containing the population count data for the population of interest (see Figure 3). Next, they supply the fit object and the population count data to the function calc_fp_c. Results can be plotted using the plot_fp_c function.

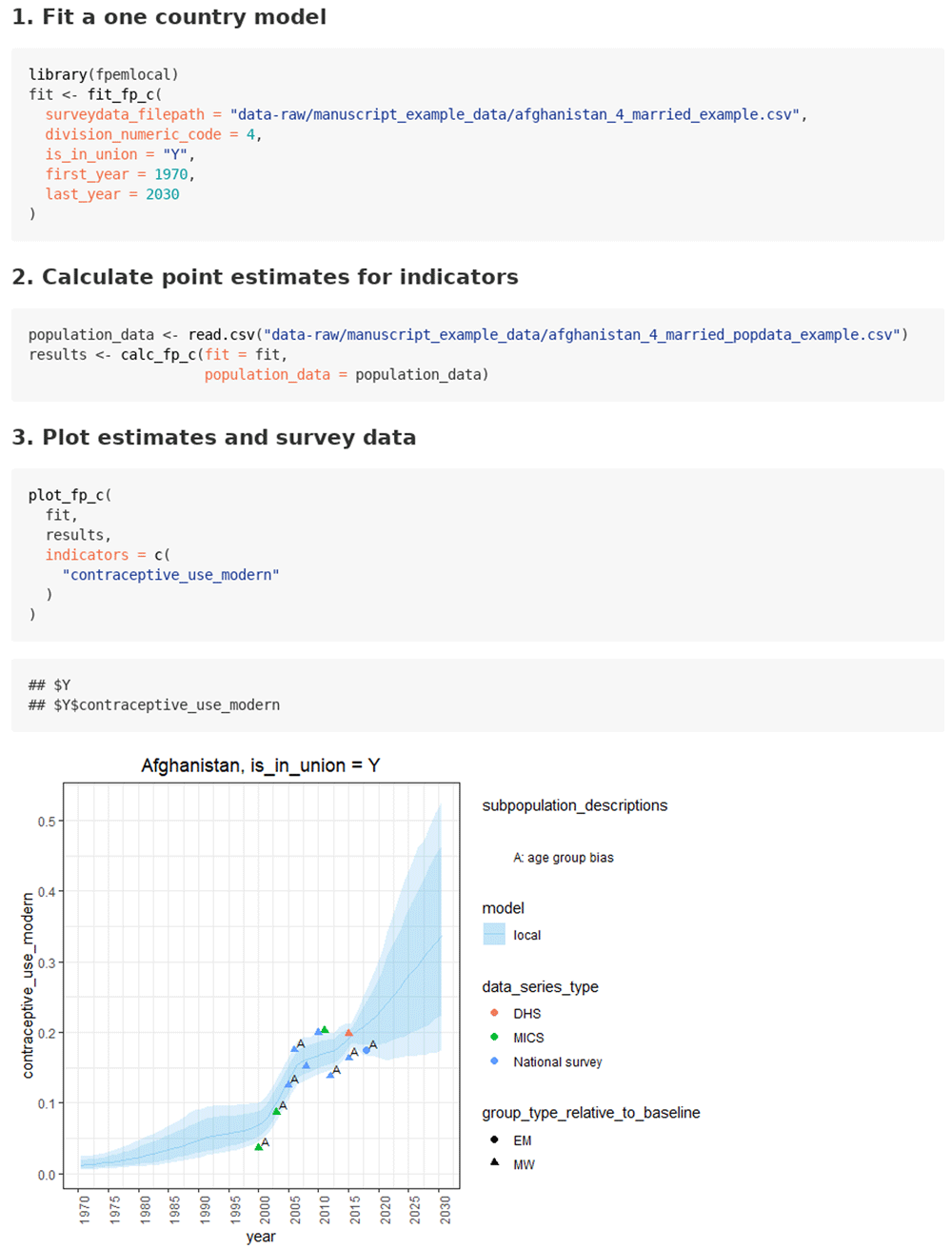

Figure 3. Function calls and illustrative output for use case 1.2: Estimating FP indicators for married women with custom user data.
Case 1.3 Estimating FP indicators with custom subnational datasets. The user must supply a custom dataset for the use of fpemlocal for subnational estimation, as no default datasets are available. The use case for subnational estimation with custom datasets is given in the ‘subnational’ vignette. The use case follows that from case 1.2 with the only change being that the user sets the argument subnational equal to TRUE when calling subnational fit_fp_c. Internally, this results in using parameters for model fitting that are relevant for subnational runs, considering each subnation to be a “country” within the “subregion” of its respective nation. For example, mean pace of the uptake parameters are obtained from the country of interest (as indicated by division code) as opposed to its larger region. As in case 1.2, the user supplies custom survey data for model fitting and custom population counts.
Case 2: Estimating FP indicators for all women
The use case for estimating FP indicators for all women is given in the `estimating for all women` vignette. Obtaining results for both in_union and not_in_union women entails running the in-union and not-in-union model. In this use case, the user can supply survey data for in_union and not_in_union women or use the default UNPD data base, and the model is fit to both by specifying argument is_in_union = “ALL” in the model fit function call. The resulting fit object is a named list of fits (see Figure 4).

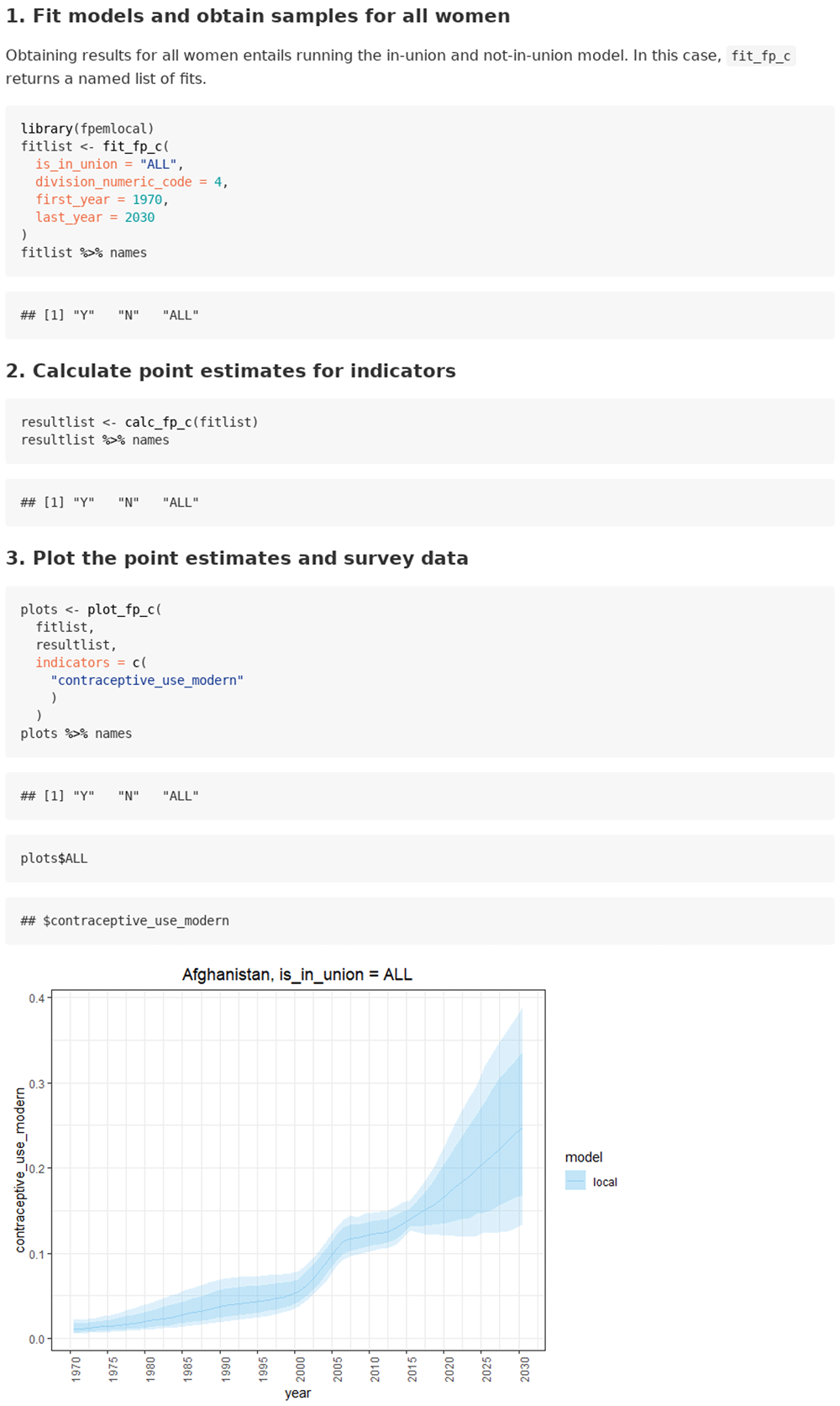

Figure 4. Function calls and illustrative output for use case 2: Estimating FP indicators for all women.
Next, the user supplies the entire list of fits from fit_fp_c to the function calc_fp_c. Like the previous function, calc_fp_c returns a list of results with estimates for in-union women, not-in-union women, and all women. Results can be plotted using the plot_fp_c function.
Case 3: Aggregating multiple fits and obtaining aggregate estimates
fpemlocal allows users to aggregate estimates from multiple populations to produce estimates that refer to the combined population. Aggregate estimates of family planning proportions - referring to contraceptive use, unmet need, and the no need category - are given by the weighted average of population-specific outcomes, with weights given by the number of women in the respective population. For example, to obtain modern use among in_union women, the weights are given by the number of in_union women in each single population that is combined in the aggregate outcome.
The case for aggregating multiple fits is given in the ‘aggregating estimates’ vignette and summarized in Figure 5. First, the user fits FPEM to each population of interest. Next, the user prepares a single population count dataset containing all populations of interest. The user supplies the fit objects and the population data to the function calc_fp_aggregate to obtain aggregate estimates.

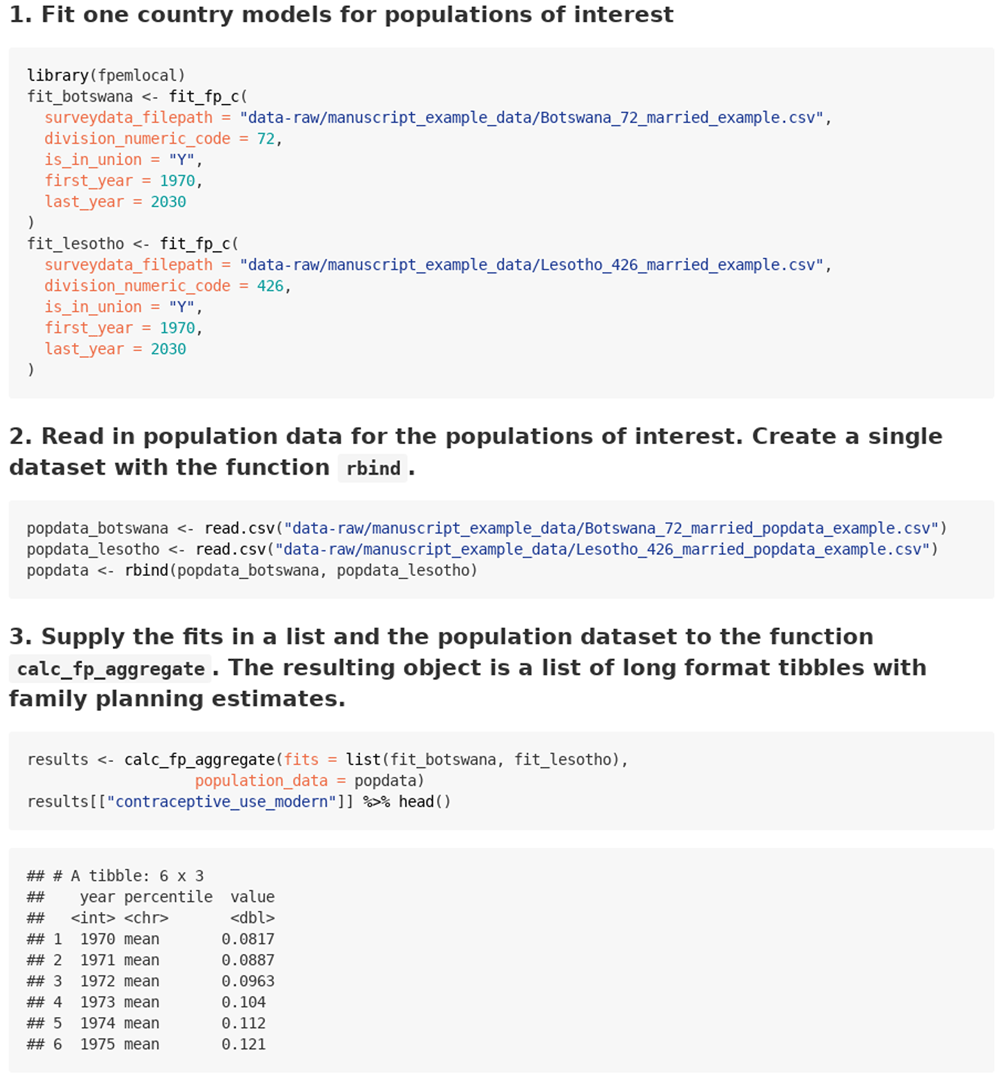

Figure 5. Function calls and illustrative output for use case 3: Aggregating multiple fits and obtaining aggregate estimates.
Additional features
Automatic fit saving: fpemlocal includes wrapper functions, built around the functions described so far, to automatically save outputs. These functions may be useful to users fitting the model to multiple countries. The wrapper functions are given by fit_fp_c_autosave, calc_fp_cautosave, and plot_fp_c_autosave.
Diagnostics: The fit function fit_fp_c includes an option to save diagnostic checks in the form of trace plots and convergence checks (Vehtari et al., 2020). Default settings are used in model fitting based on analysis of these diagnostics.
Service statistics data: Service statistics data as summarized into Estimated Modern Use (EMU) can be included in the model fitting as well (Magnani et al., 2018).
Conclusions
We introduced the R package fpemlocal. This package can be used to fit the local Family Planning Estimation Model to populations of interest. The package is used by Track20 for use in country workshops, through an online interface (Track20, n.d.) which has informed FP2020 initiative reporting since 2013. The package is used by Track20 which has informed FP2020 initiative progress reports (FP2020, 2019). Recent additional use of fpemlocal includes the assessment of the increase in modern contraceptive use needed to reach demand satisfied targets by 2030 (Cahill et al., 2020).
Fpemlocal can serve as an example for other global modeling exercises. Publishing the code in the form of an R package facilitates the production, reproduction, and transparency, of model-based estimates. The local implementation of a global model makes fitting less computationally demanding, thus enabling users with limited computational resources to fit Bayesian models to populations of their choice, as indicated in the case studies.
Software availability
Software source code: https://github.com/AlkemaLab/fpemlocal
Archived source code as at time of publication: https://doi.org/10.5281/zenodo.4302624 (Guranich et al., 2020).
License: MIT license
